4 Inch PCD Trailer Trolley Wheel Hubs + Bearings With Weld On Stub Axle 1pk
Regulärer Preis
£35.25 GBP
Verkaufspreis
£35.25 GBP
Beschreibung
Trailer stub axle complete with 4 inch PCD cast wheel hub
This listing is for 1 x stub axle complete with 1 x hub and complete bearing set

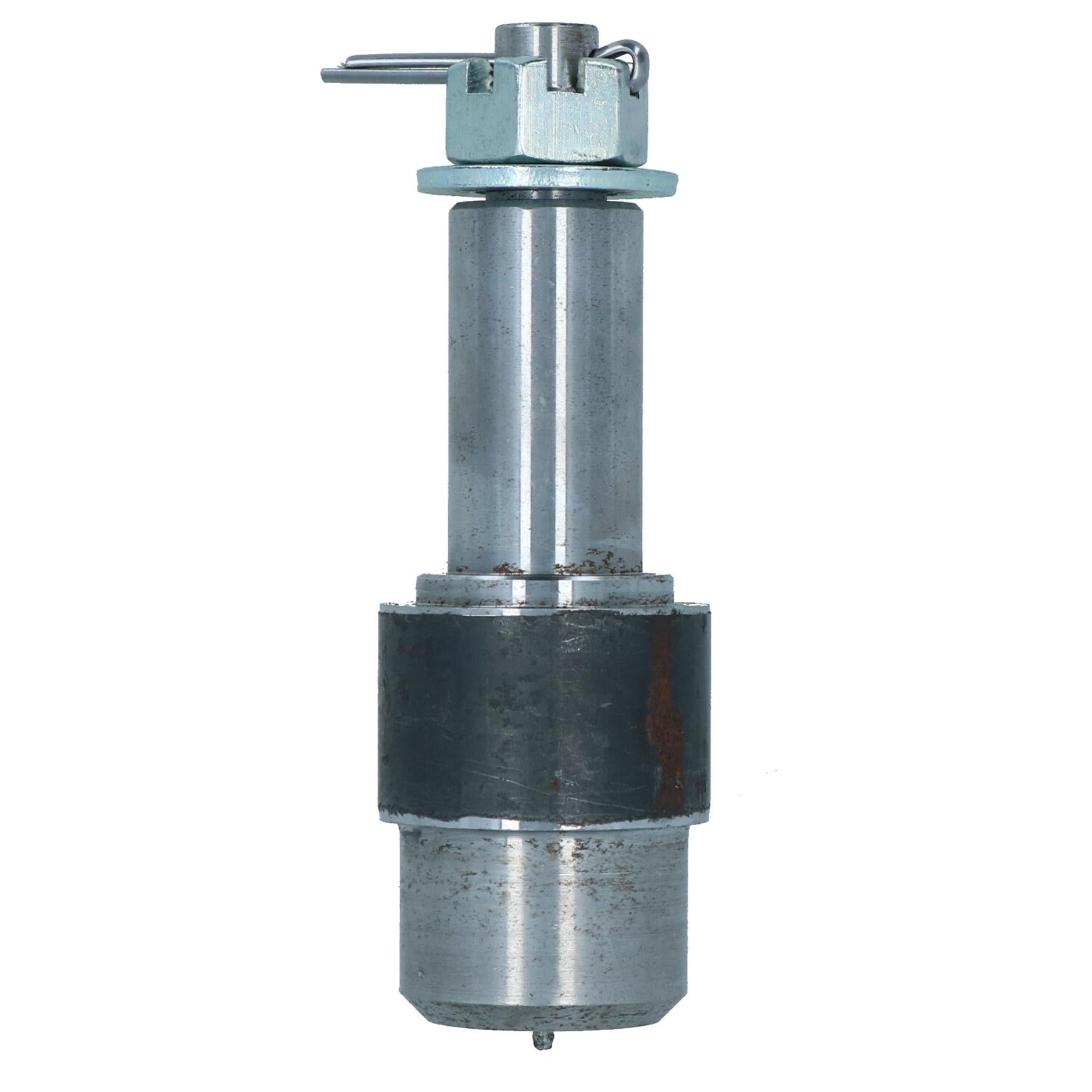

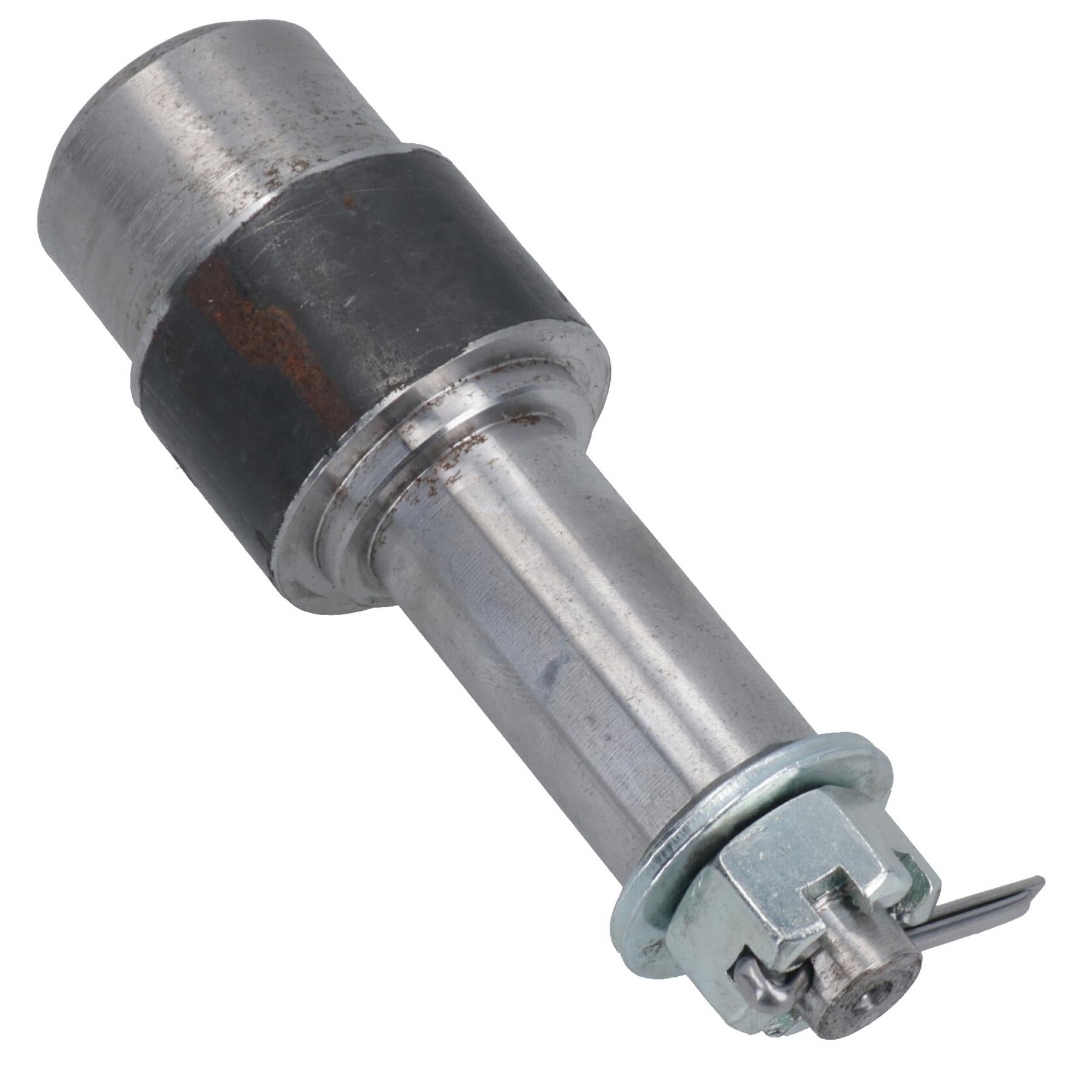

STUB AXLE DESCRIPTION
Stub axle which makes the item longer and kicks the hub away further from the side of the trailer
Ideal for use when the wheels being replaced are wider like flotation tyres or the rim on the wheel is not centralised
Ideal for building trailers or trolleys
Can also be fitted to road trailers if fitted to a suitable suspension system
Weld on stub axle
Solid steel for maximum strength and durability
Can be welded onto as no coating on the stub axle
Solid end that can be welded or bolted
Ideal for sliding into box section for easy attachment
Up to a capacity of 750kg (per axle, so 2 stub axles)
SPECIFICATIONS
• Trailer stub axle
• Total length (complete length) – 130mm
• Stub axle shaft diameter – 1 inch / 25.4mm
• Stub axle shaft length – 50mm
• End of the stub axle dimensions – 37mm (W) x 25mm (H)
• Material – Steel (heavy duty)

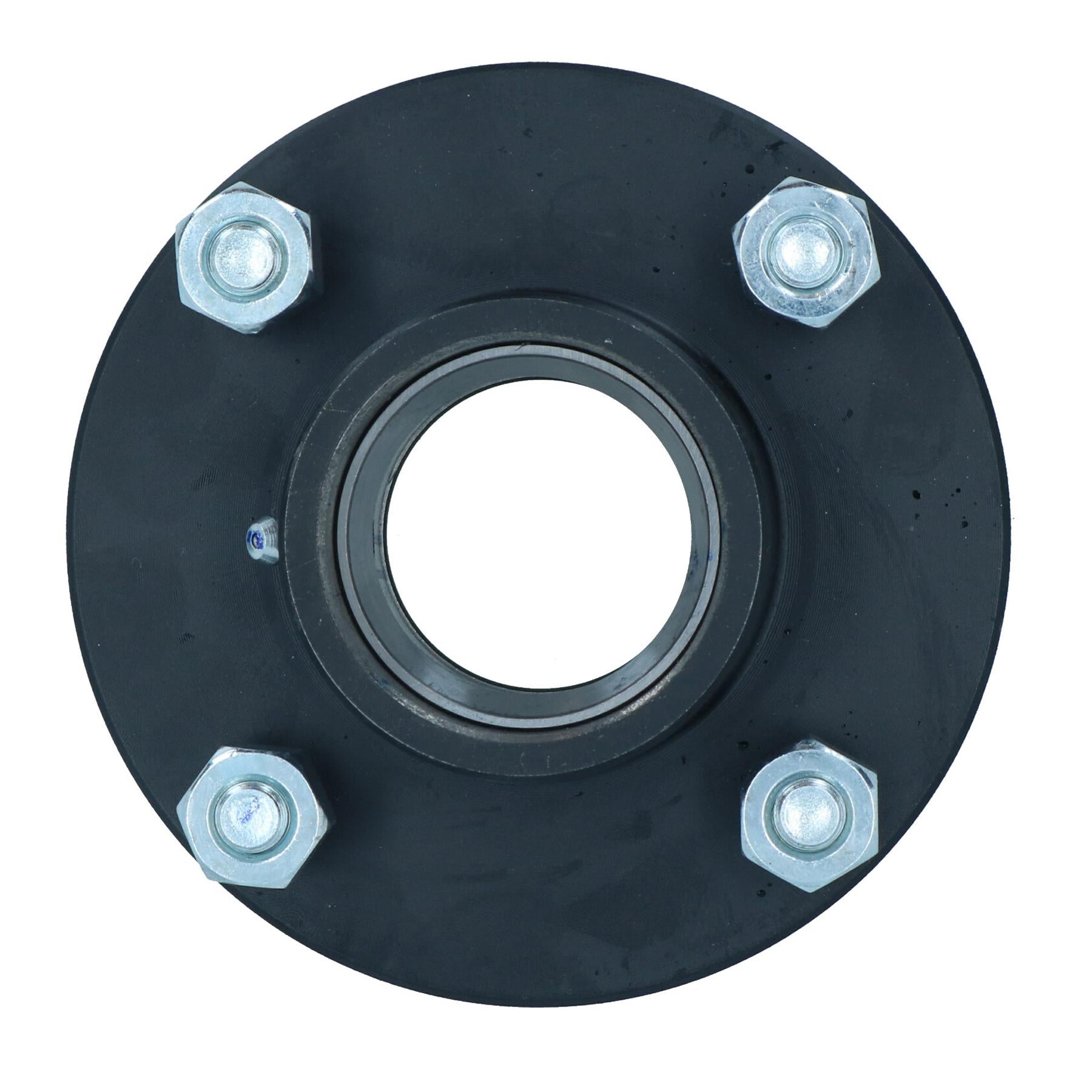

CAST HUB DESCRIPTION
Taper roller bearing hub
Cast hub for maximum strength and durability
4 stud hub with 4 inch PCD (PCD = Pitch centre Diameter – distance diagonally from one stud to another)
Complete fitted with 3/8in wheel studs
The bearing races are already pressed into the hub meaning no specialist tools are required to fit the hubs
The hub is also fitted with a grease nipple and metal hub cap

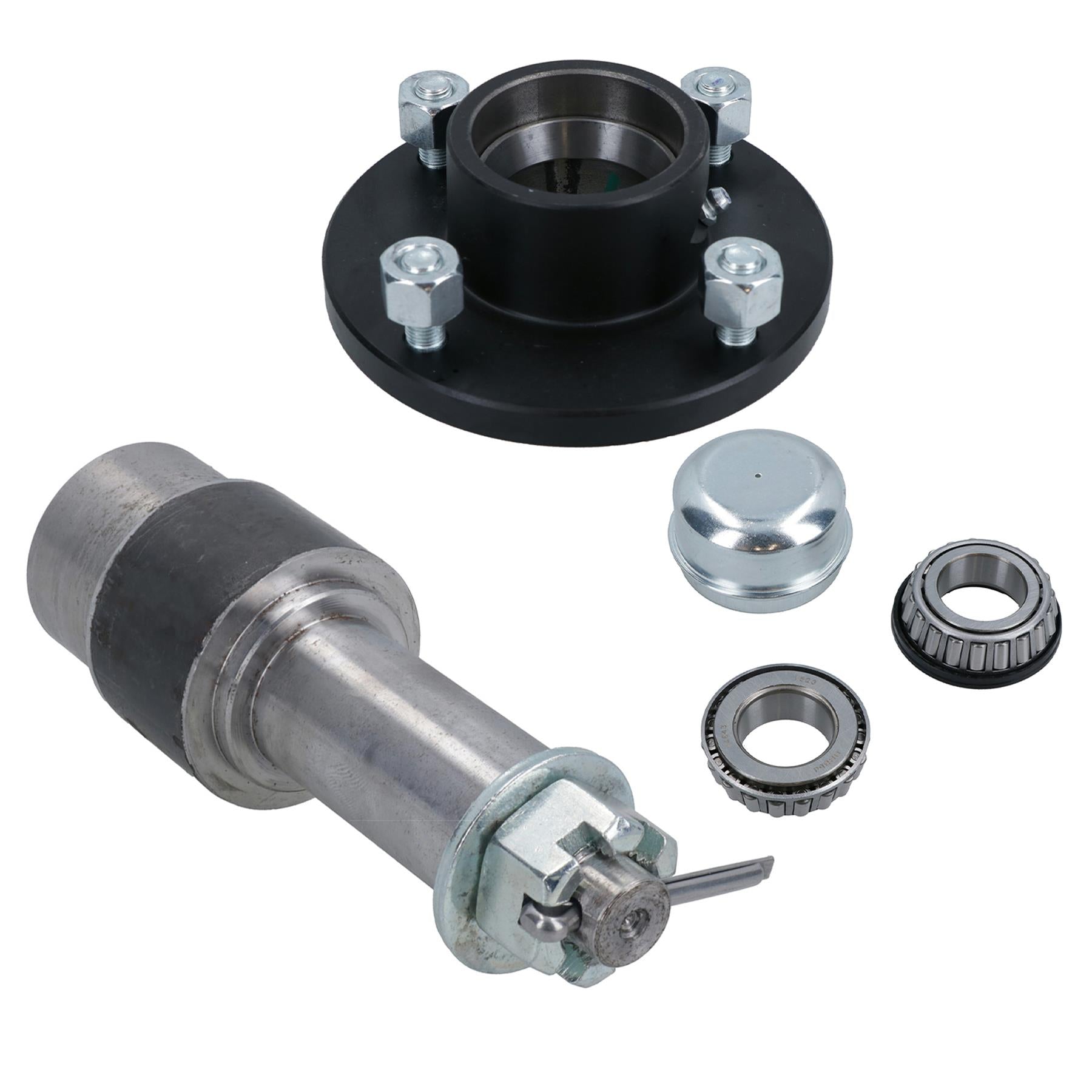

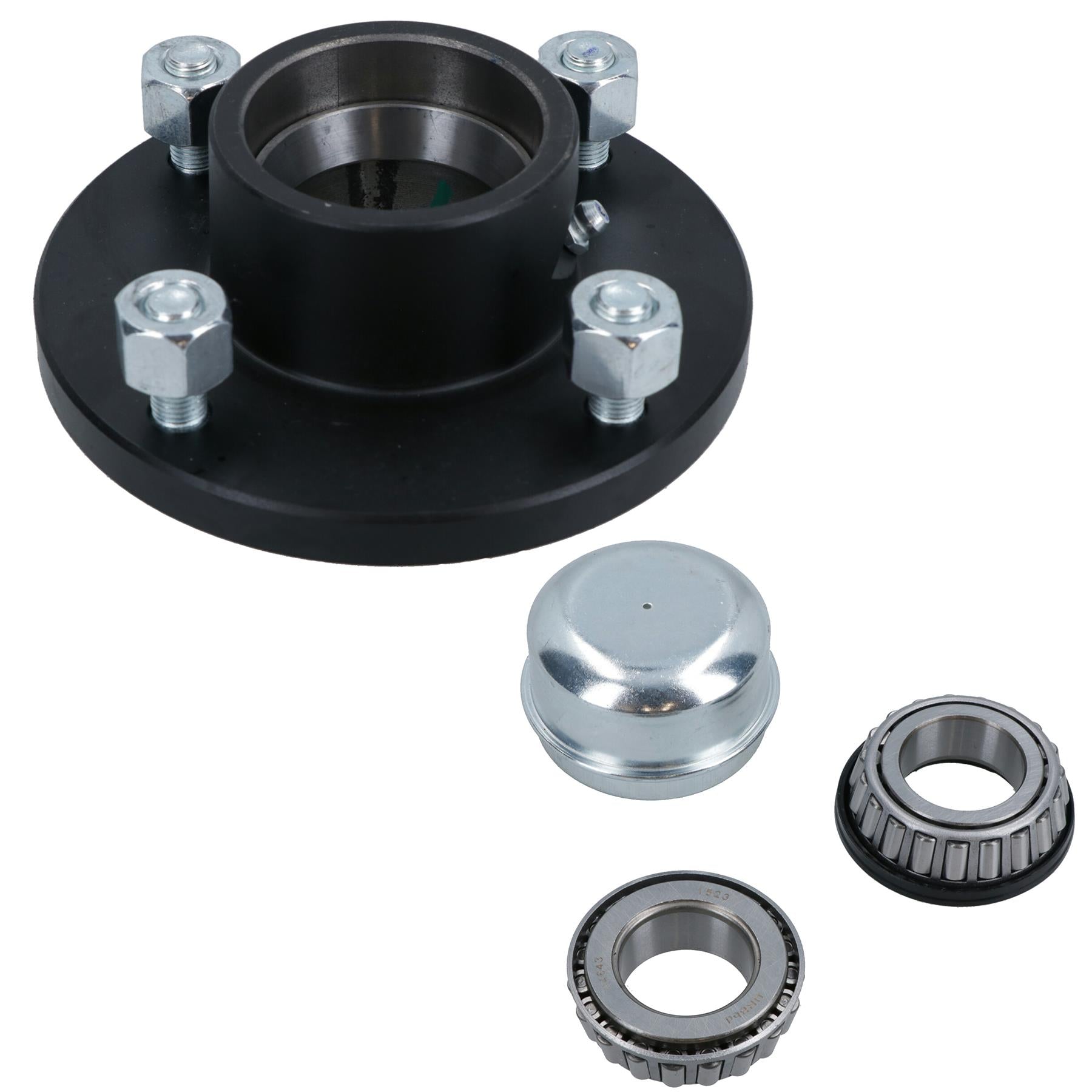

LISTING INCLUDES THE FOLLOWING
• 1 x Cast Hub
• 1 x outer bearing (complete with seal)
• 1 x inner bearing
• 1 x hub cap
• 4 x 3/8in wheel nuts

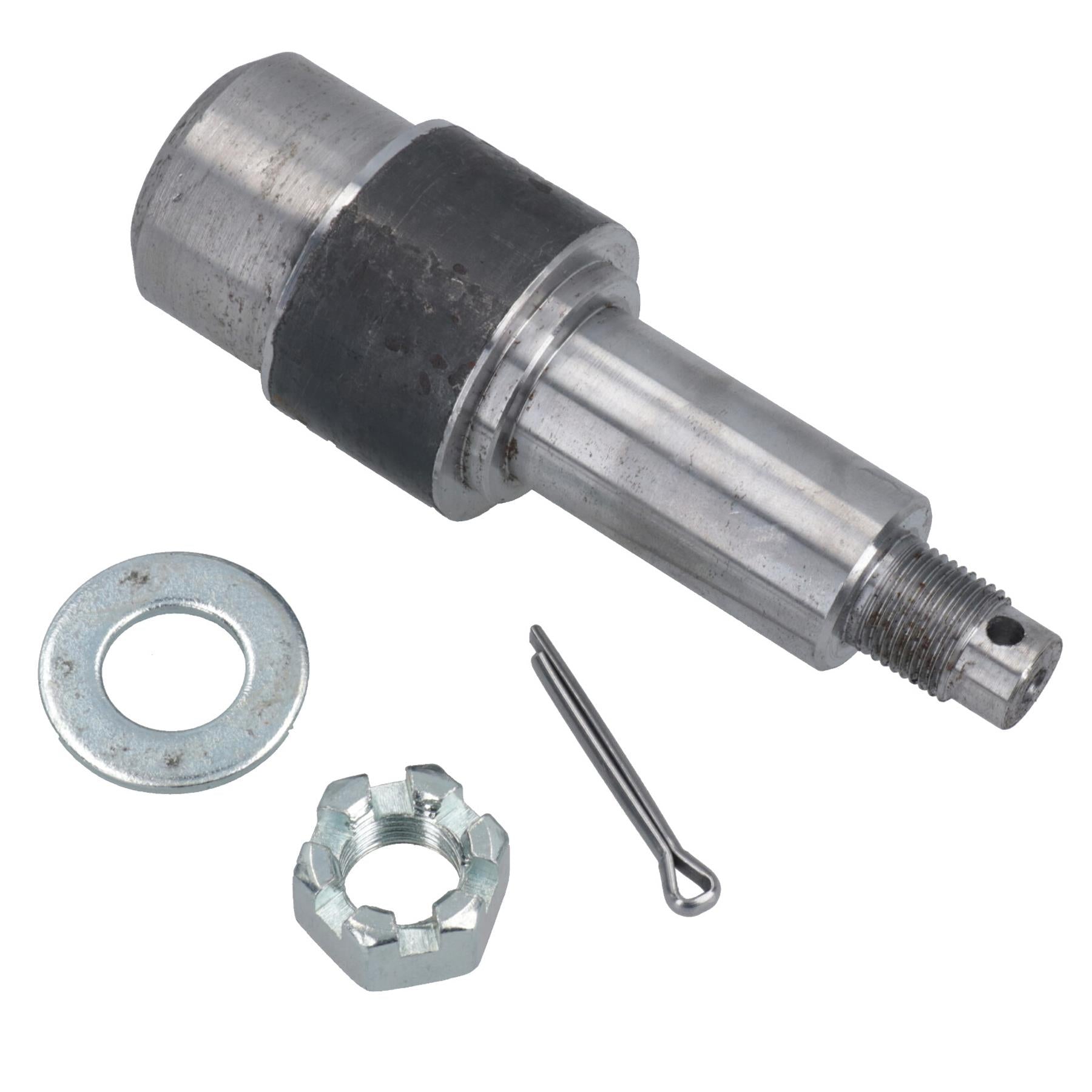

• 1 x stub axle (complete with castle nut, washer and split pin)
This listing is for 1 x stub axle complete with 1 x hub and complete bearing set
STUB AXLE DESCRIPTION
Stub axle which makes the item longer and kicks the hub away further from the side of the trailer
Ideal for use when the wheels being replaced are wider like flotation tyres or the rim on the wheel is not centralised
Ideal for building trailers or trolleys
Can also be fitted to road trailers if fitted to a suitable suspension system
Weld on stub axle
Solid steel for maximum strength and durability
Can be welded onto as no coating on the stub axle
Solid end that can be welded or bolted
Ideal for sliding into box section for easy attachment
Up to a capacity of 750kg (per axle, so 2 stub axles)
SPECIFICATIONS
• Trailer stub axle
• Total length (complete length) – 130mm
• Stub axle shaft diameter – 1 inch / 25.4mm
• Stub axle shaft length – 50mm
• End of the stub axle dimensions – 37mm (W) x 25mm (H)
• Material – Steel (heavy duty)
CAST HUB DESCRIPTION
Taper roller bearing hub
Cast hub for maximum strength and durability
4 stud hub with 4 inch PCD (PCD = Pitch centre Diameter – distance diagonally from one stud to another)
Complete fitted with 3/8in wheel studs
The bearing races are already pressed into the hub meaning no specialist tools are required to fit the hubs
The hub is also fitted with a grease nipple and metal hub cap
LISTING INCLUDES THE FOLLOWING
• 1 x Cast Hub
• 1 x outer bearing (complete with seal)
• 1 x inner bearing
• 1 x hub cap
• 4 x 3/8in wheel nuts
• 1 x stub axle (complete with castle nut, washer and split pin)
