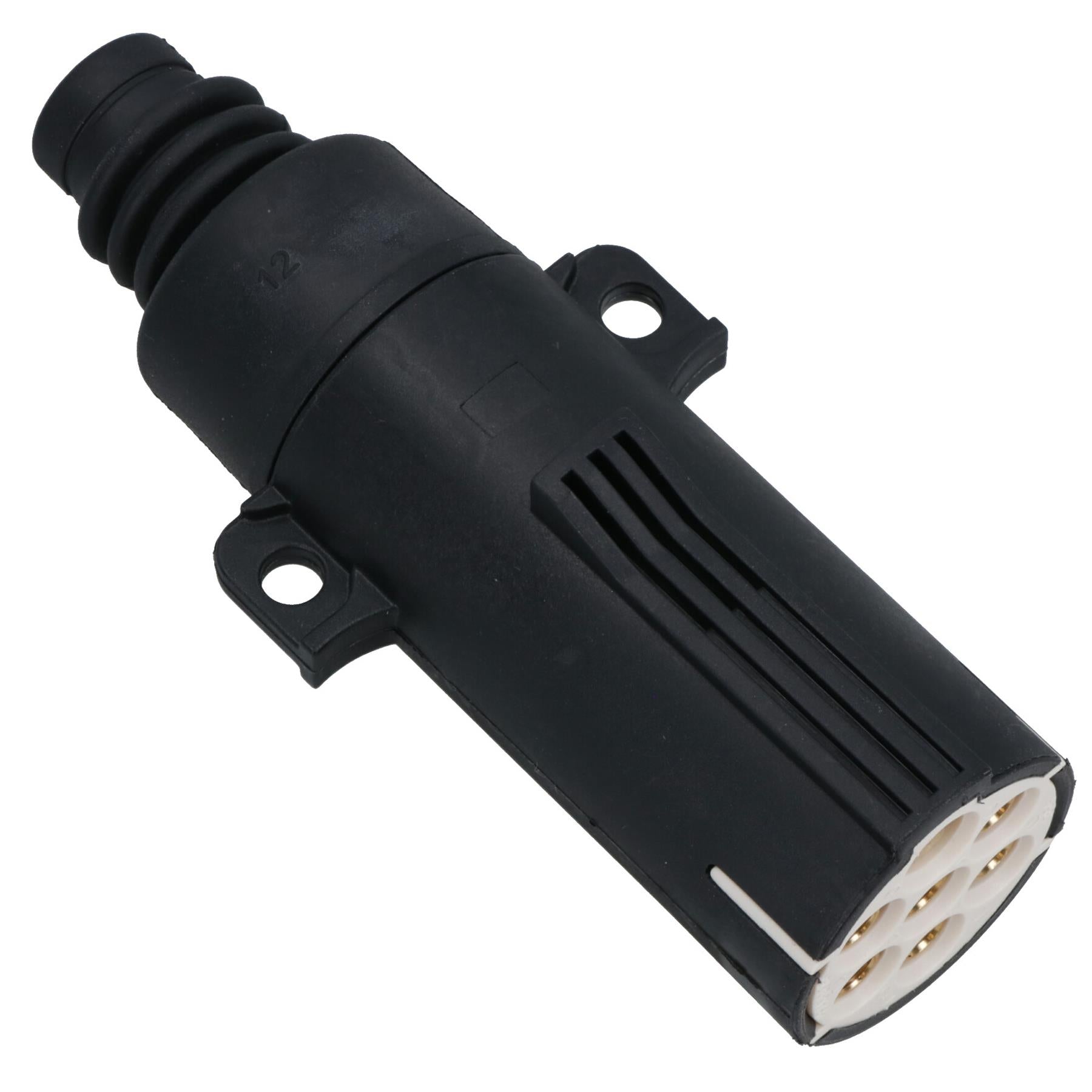

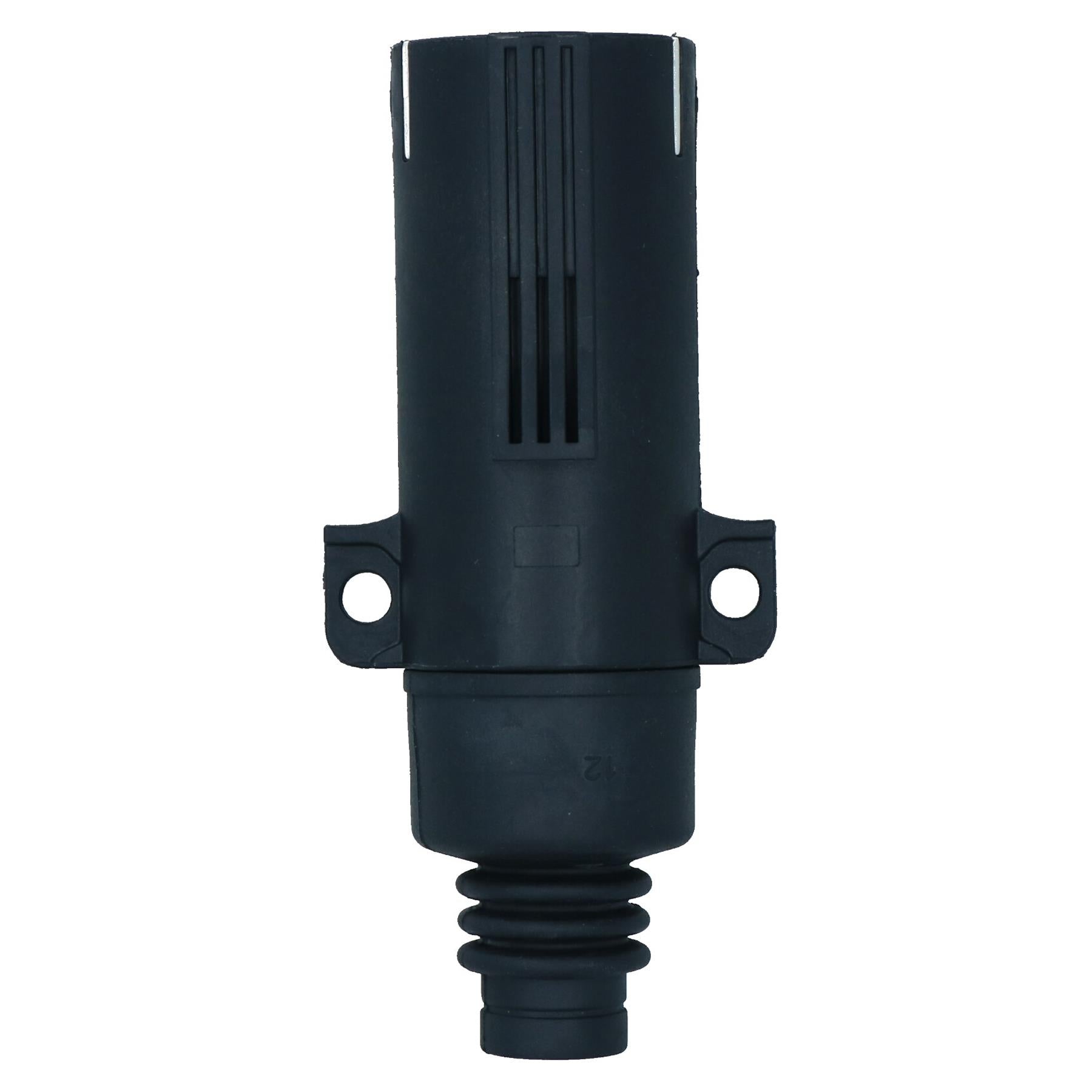

24 Volt 7 Pin S Type Plug for HGV Commercial Trailers Agricultural Vehicles

Professional 7 pin plug for commercial and larger vehicles

24 volt 7 pin plug

Suitable for commercial and agricultural applications

HGV and commercial 7 pin plug

7 pin trailer and caravan plug

Plastic body style plug

Durable plastic body for maximum strength and durability

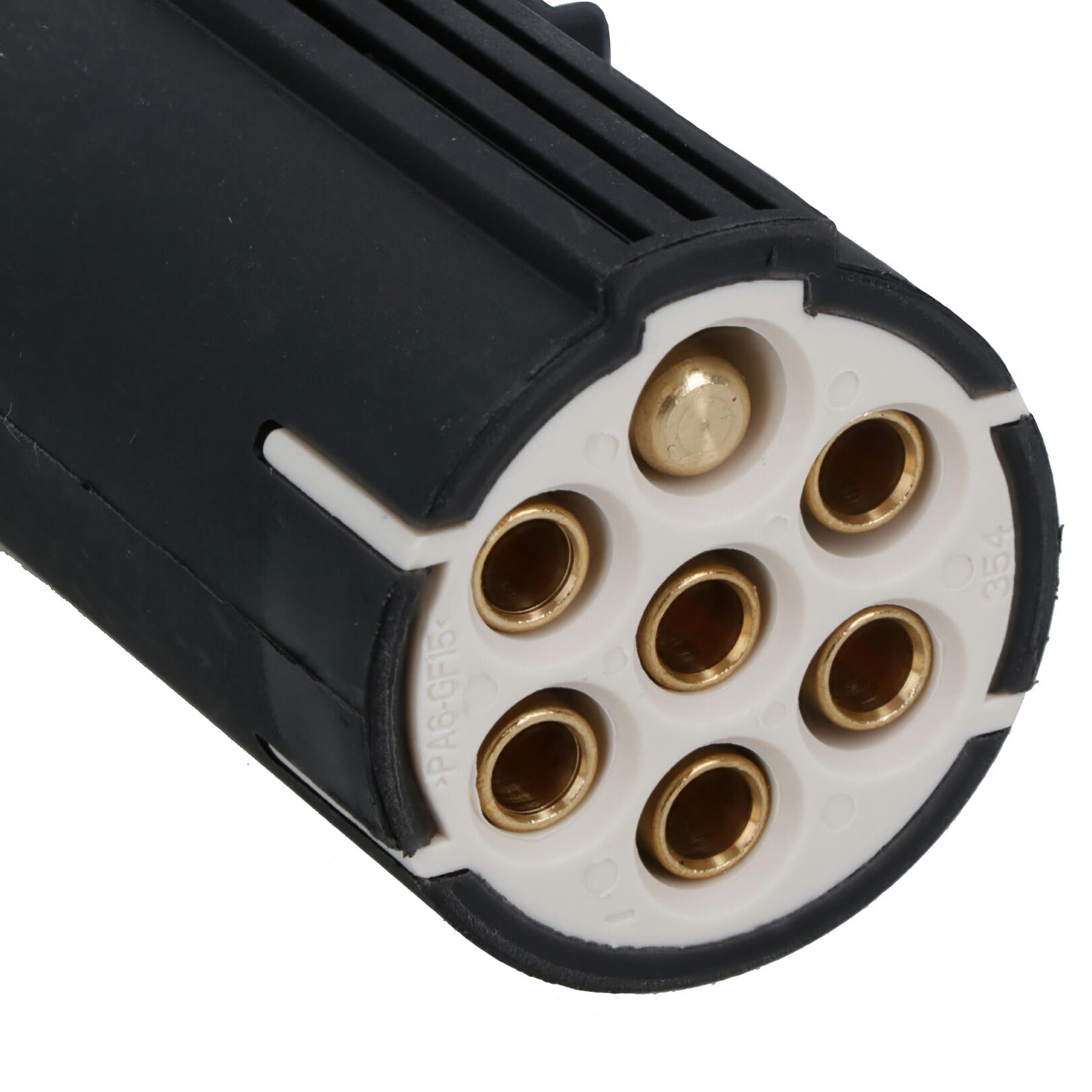

Nickel plated screw terminals – nickel plated provides better electrical connection and superior corrosion resistance than the standard brass pins

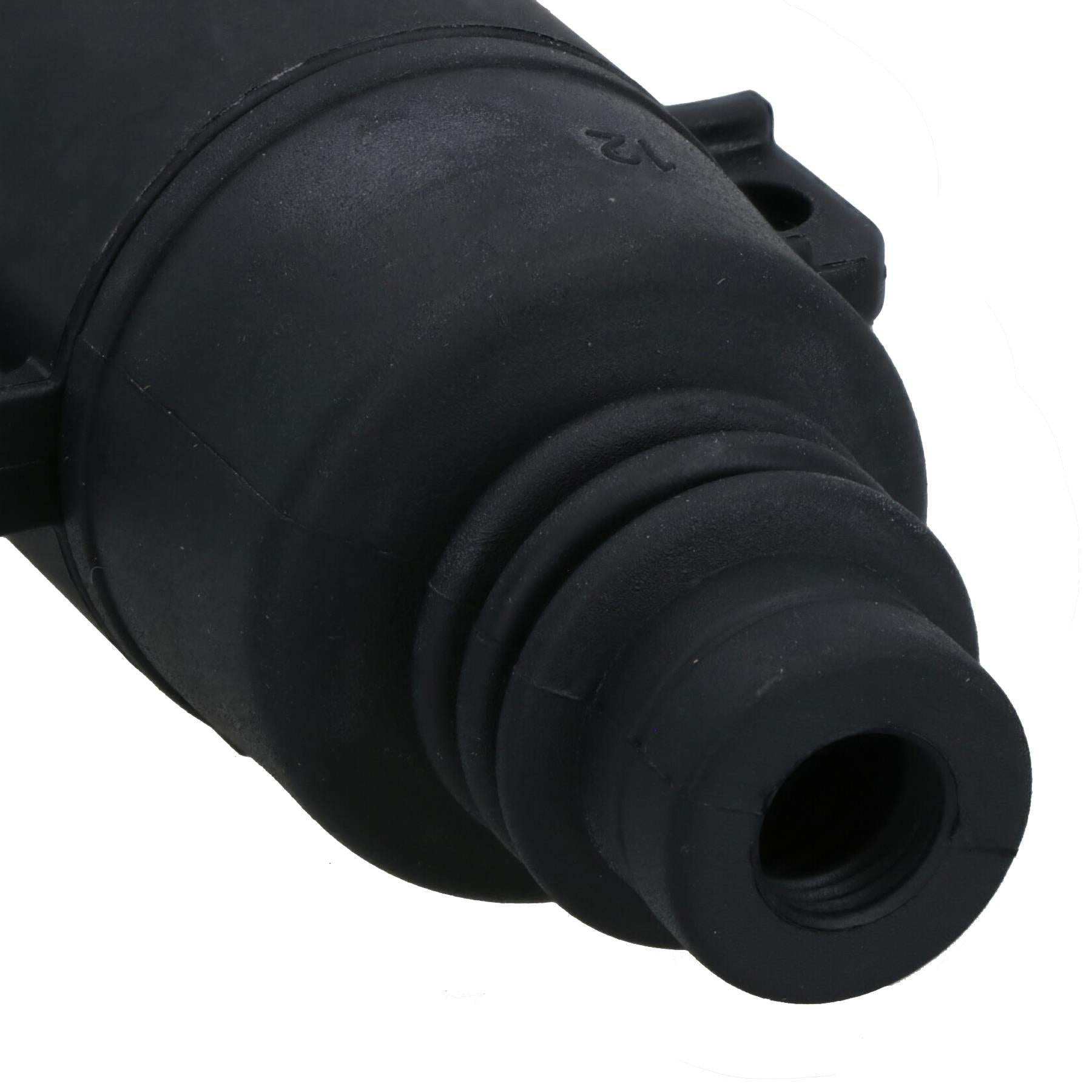

Suitable for cable up to 11.5mm in diameter

Designed to conform to ISO 1185 standards

WIRING GUIDE

• Pin number 1 – colour (white) – Earth wire
• Pin number 2 – colour (black) – Left hand side / tail wire
• Pin number 3 – colour (yellow) – Left hand indicator wire
• Pin number 4 – colour (red) – Stop wire
• Pin number 5 – colour (green) – Right Hand indicator wire
• Pin number 6 – colour (brown) – Right hand side / Tail wire
• Pin number 7 – colour (blue) – Trailer brake control wire

Please note that this is for larger HGV vehicles, please look in our shop if you are after smaller lightweight trailer 7 pin plugs
