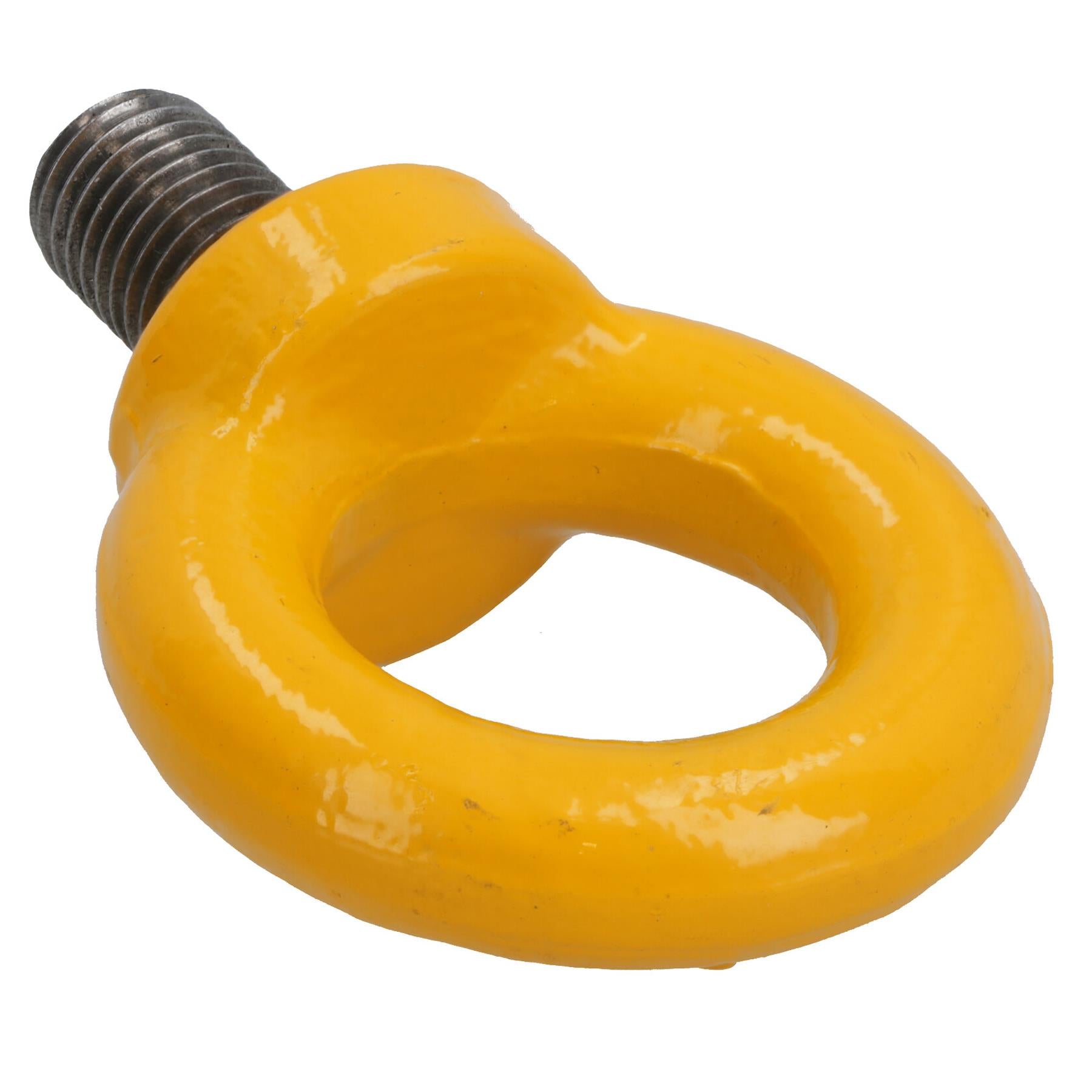

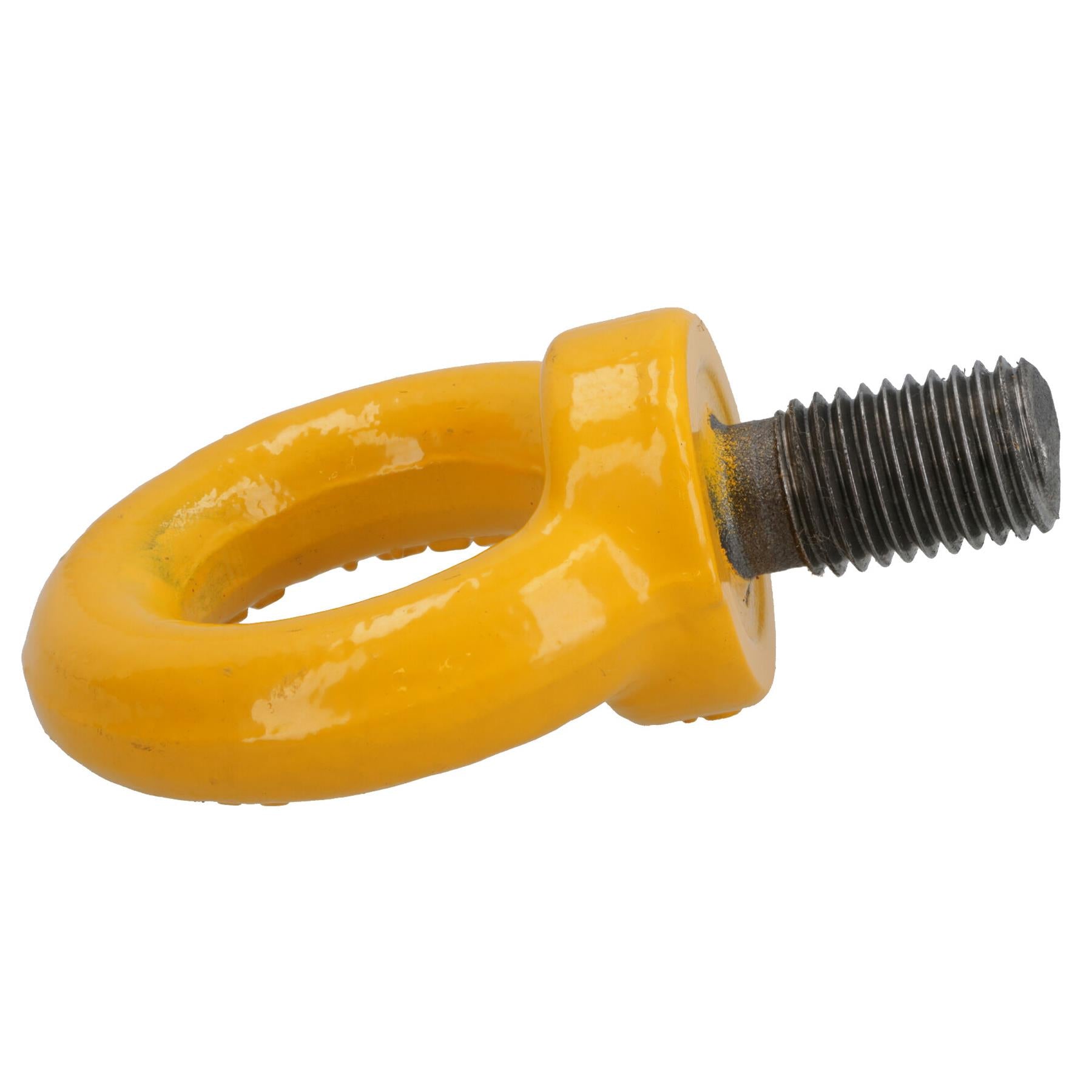

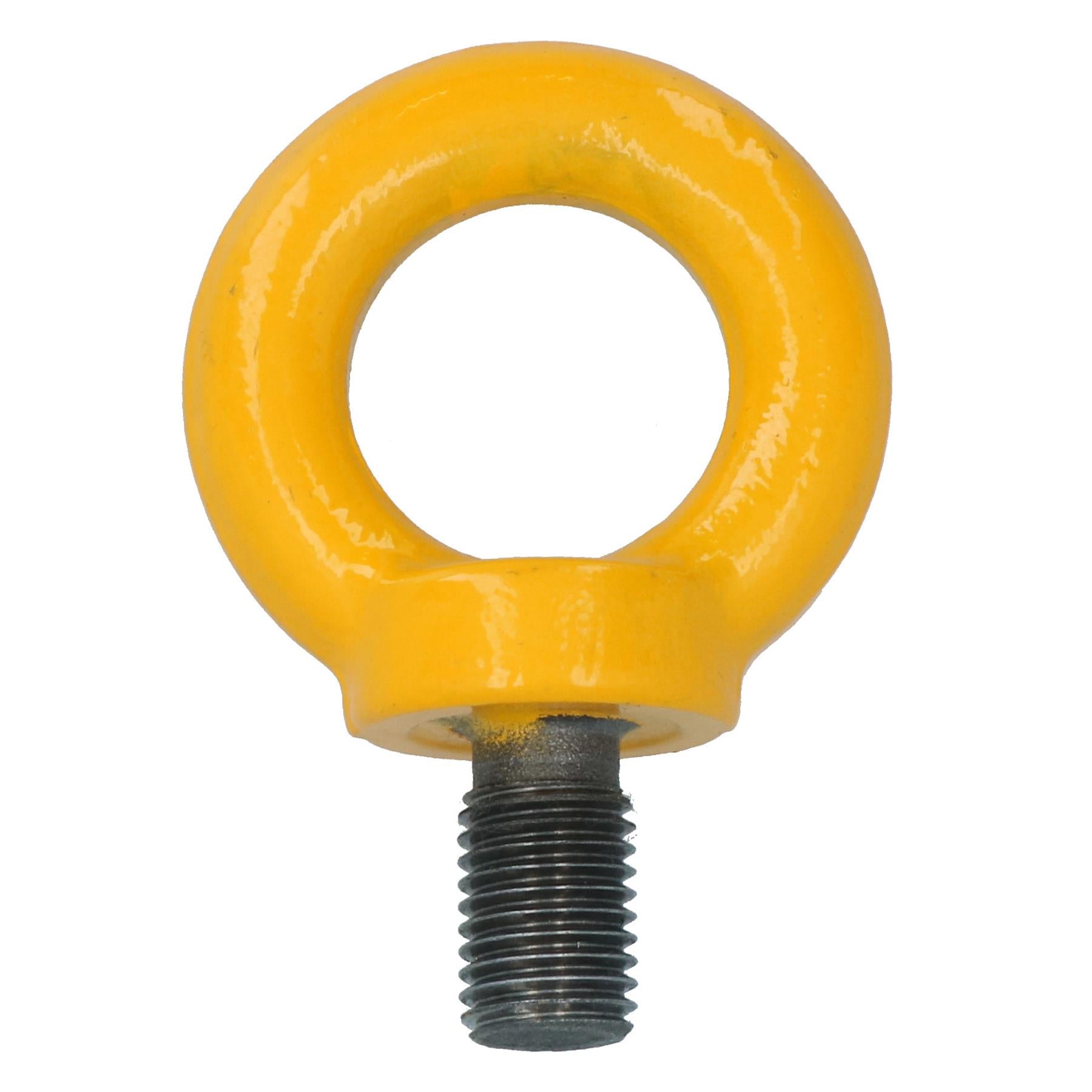

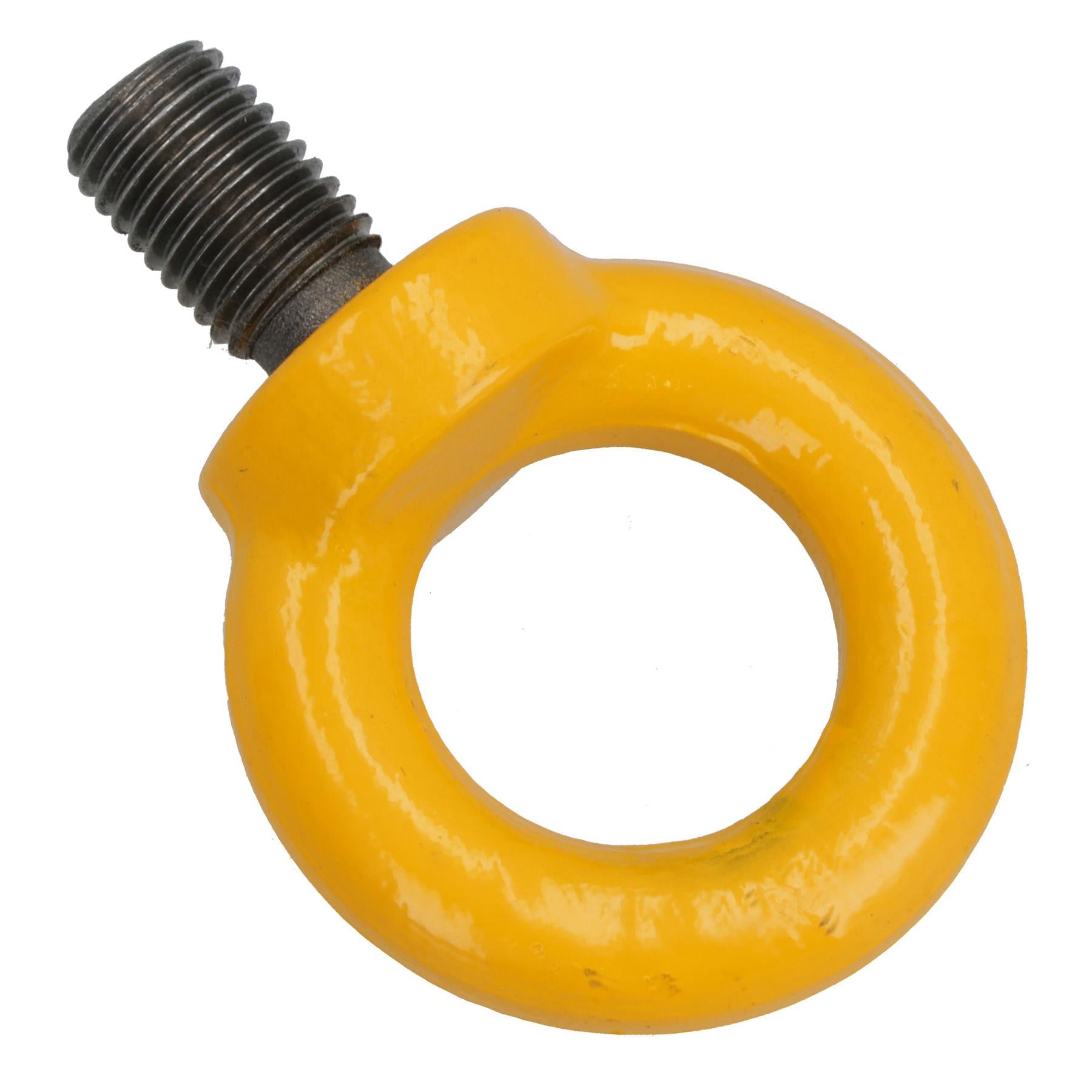

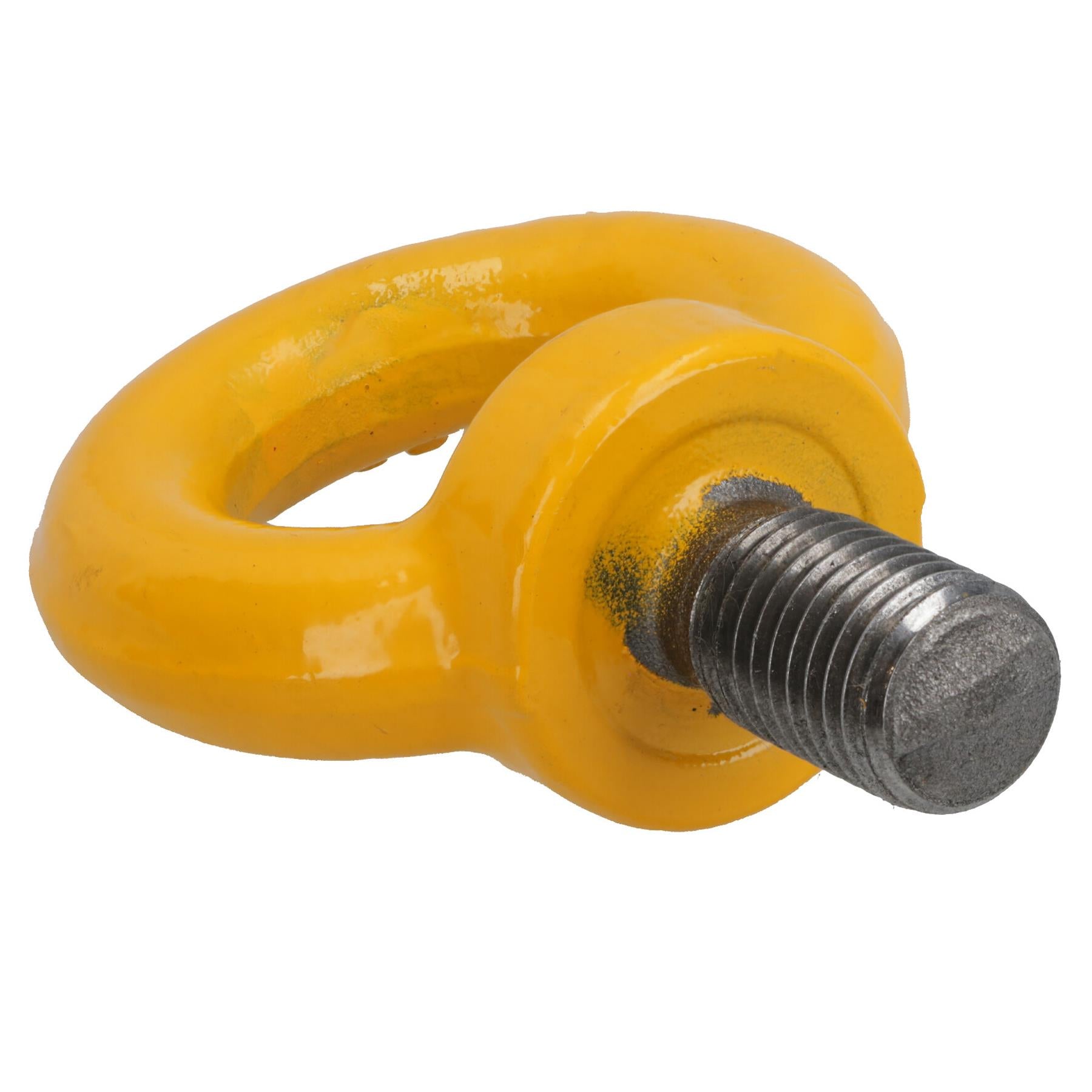

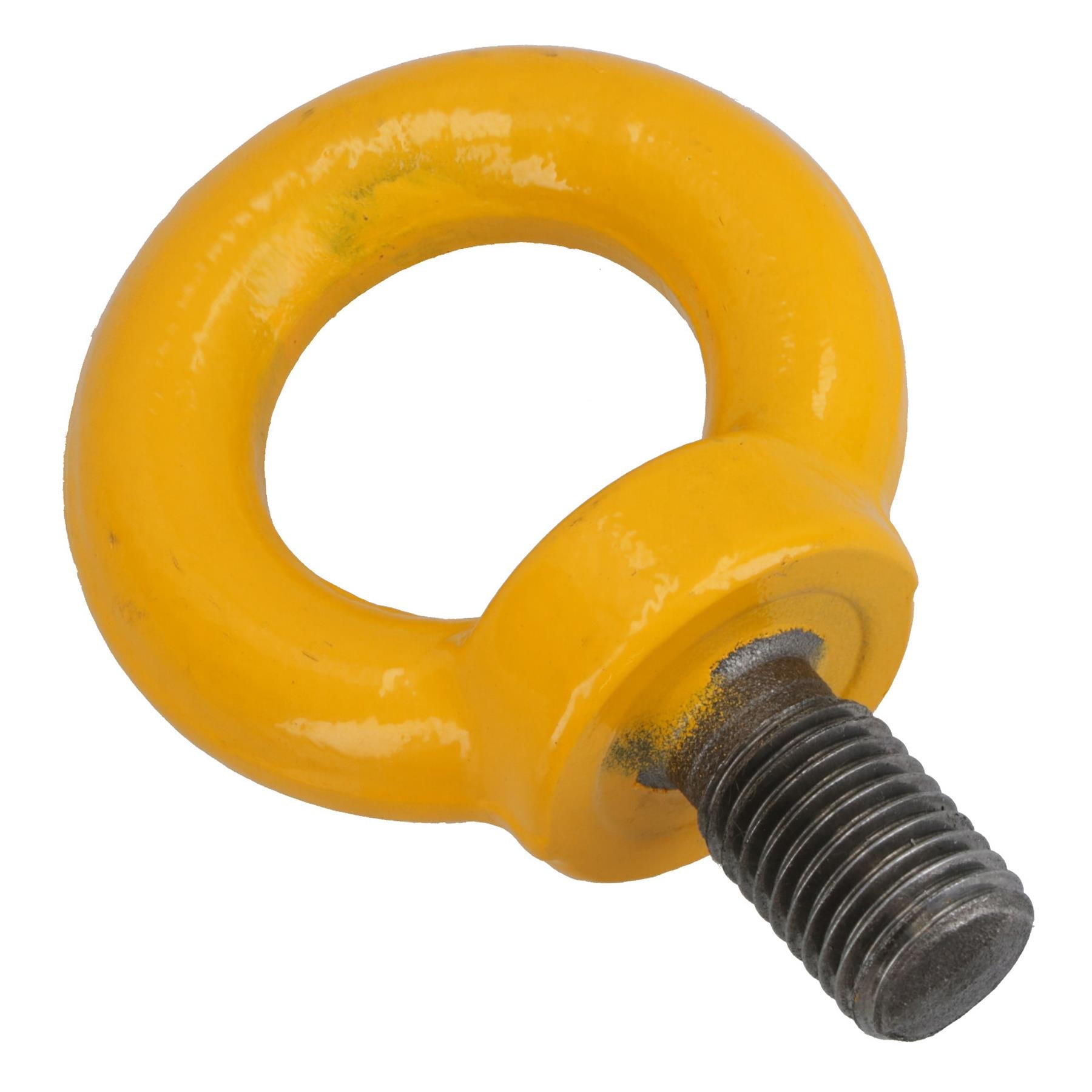

Lifting Eyes Eyebolt Ring High Tensile 6mm – 24mm 0.4 Ton - 8.0 Ton Capacity

Professional high tensile lifting eye bolt for commercial or own individual use

7 different sized lifting eyes to choose from ranging from 6mm – 24mm

Perfect for lifting machinery and securing loads where necessary

Often used in construction, marine and many automotive industries

Manufactured from Grade 80 High tensile steel for maximum strength and durability

Screw thread allows for quick and convenient installation to compatible surfaces

If the load is applied at 45 degrees the rating must be reduced to 30% of the WLL

Allows you to securely attach ropes and cables to larger structures

Used with safety harnesses to anchor for height and safety

Also used as a part of a pulley system when moving and lifting heavy loads

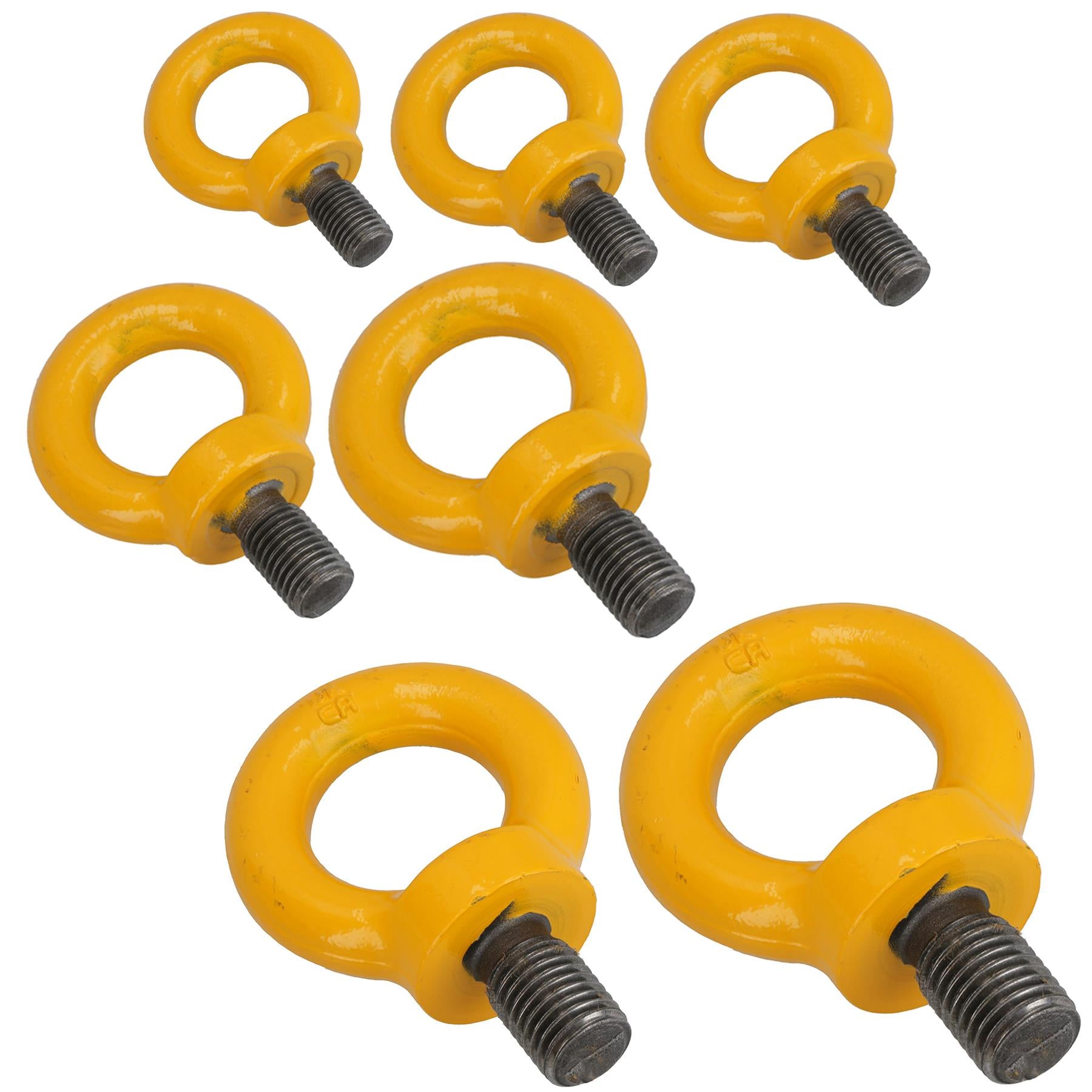

EYEBOLT RINGS TO CHOOSE FROM

• 6mm Eyebolt / thread length 13mm / Working Load Limit – 0.4 Ton
• 8mm Eyebolt / thread length 15mm / Working Load Limit – 0.8 Ton
• 10mm Eyebolt / thread length 18mm / Working Load Limit – 1.0 Ton
• 12mm Eyebolt / thread length 22mm / Working Load Limit – 2.0 Ton
• 16mm Eyebolt / thread length 28mm / Working Load Limit – 4.0 Ton
• 20mm Eyebolt / thread length 30mm / Working Load Limit – 6.0 Ton
• 24mm Eyebolt / thread length 38mm / Working Load Limit – 8.0 Ton

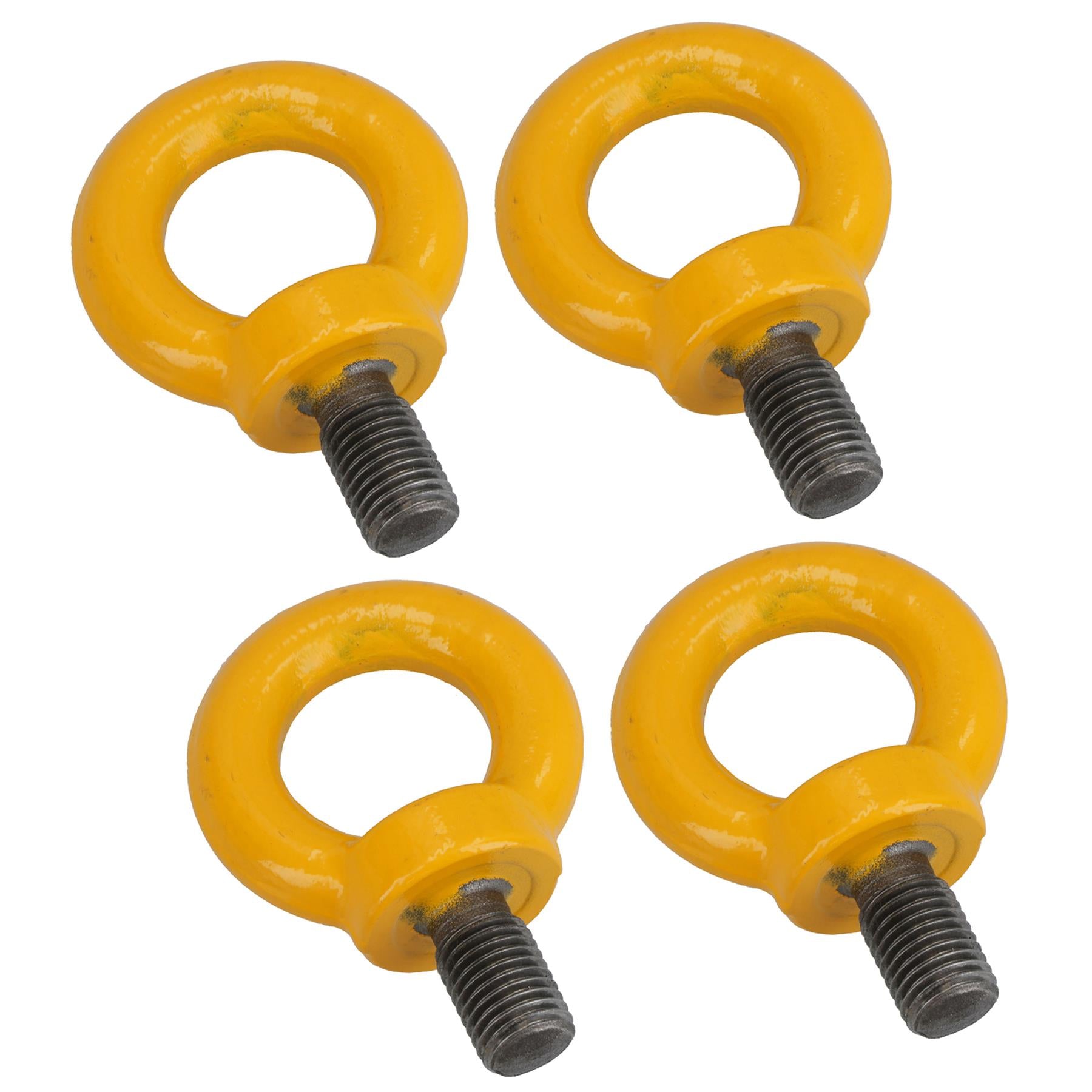

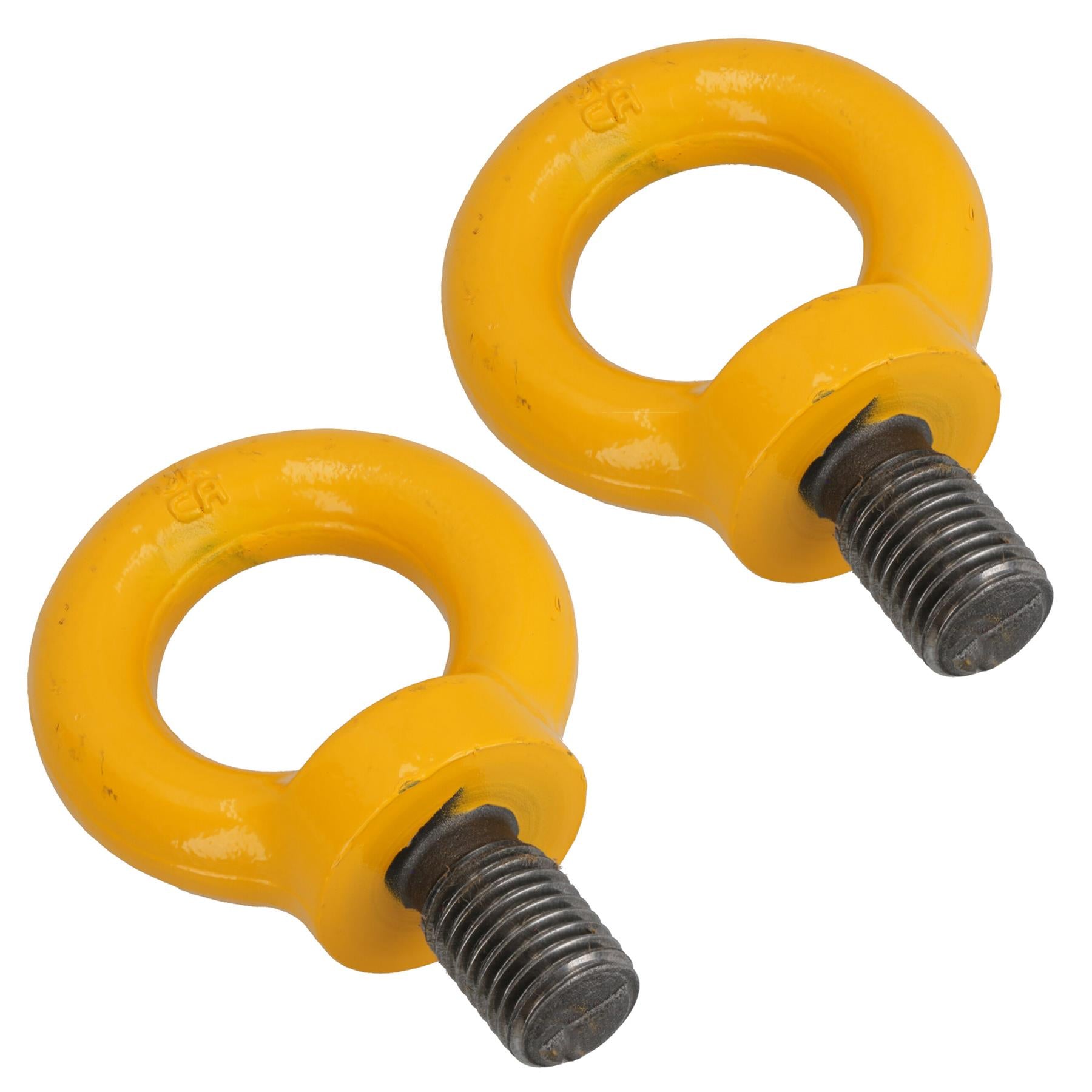

This is a multi variation listing for 7 different sizes of eyebolts and 3 different pack sizes of each, simply click on the tab above to select the correct size and pack size required
