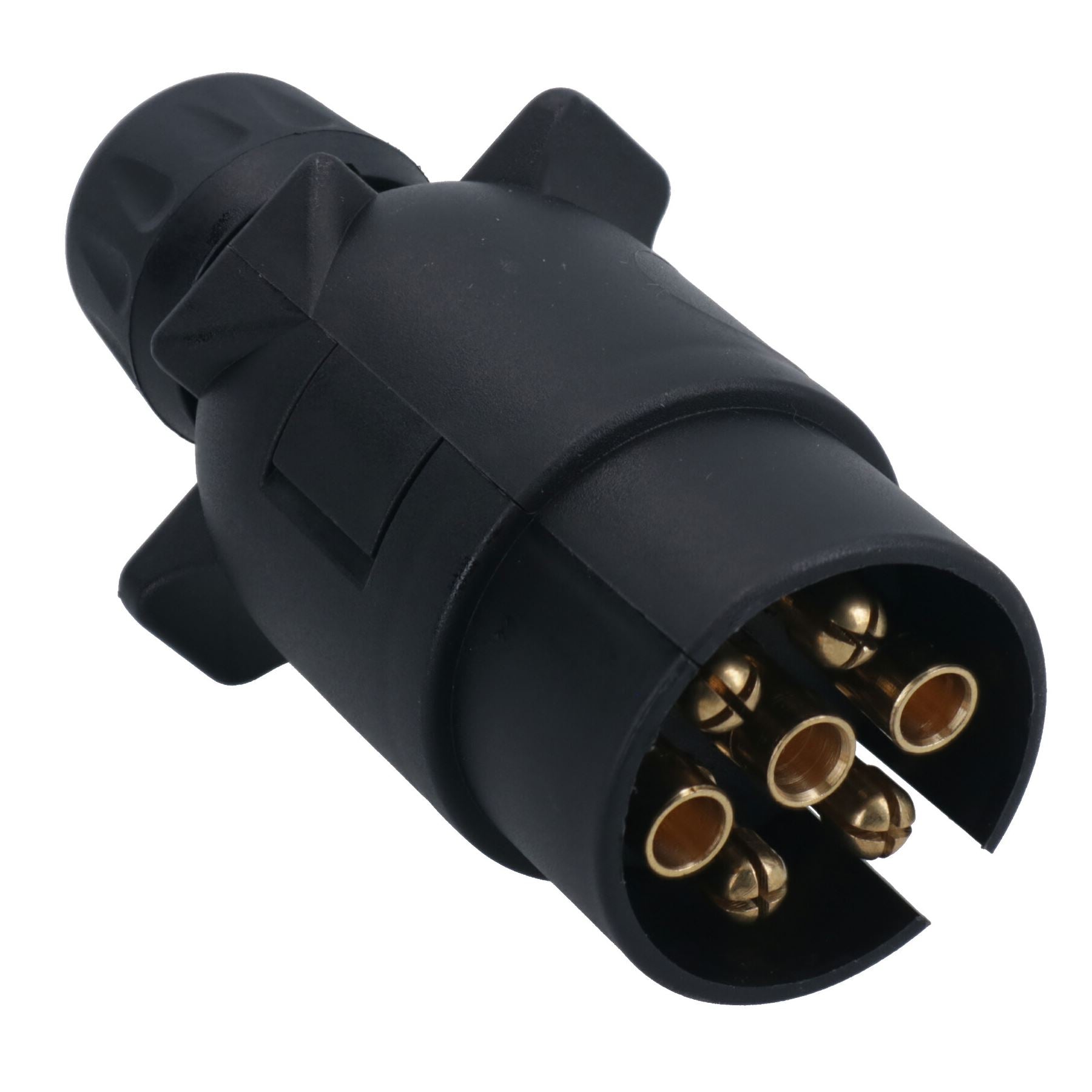

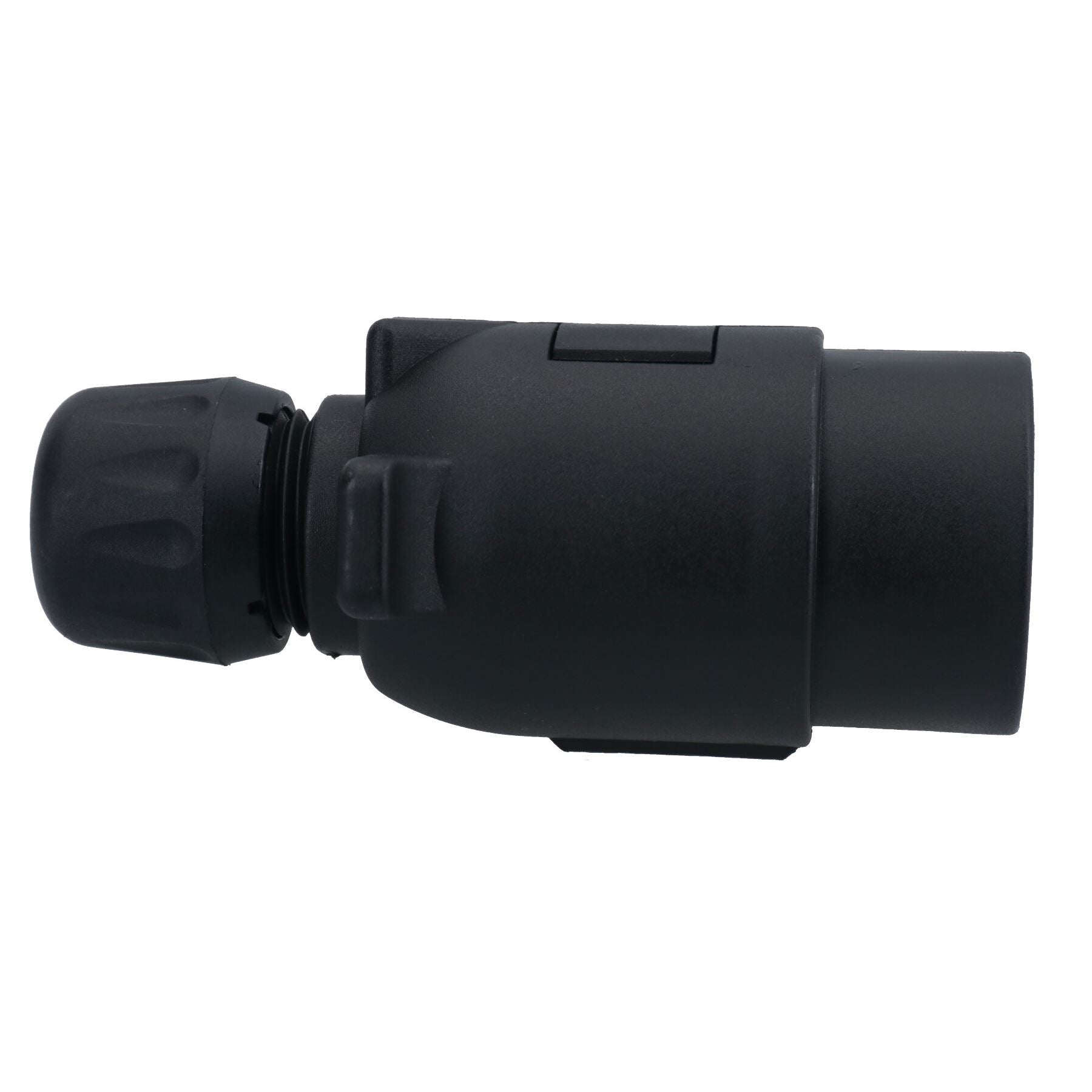

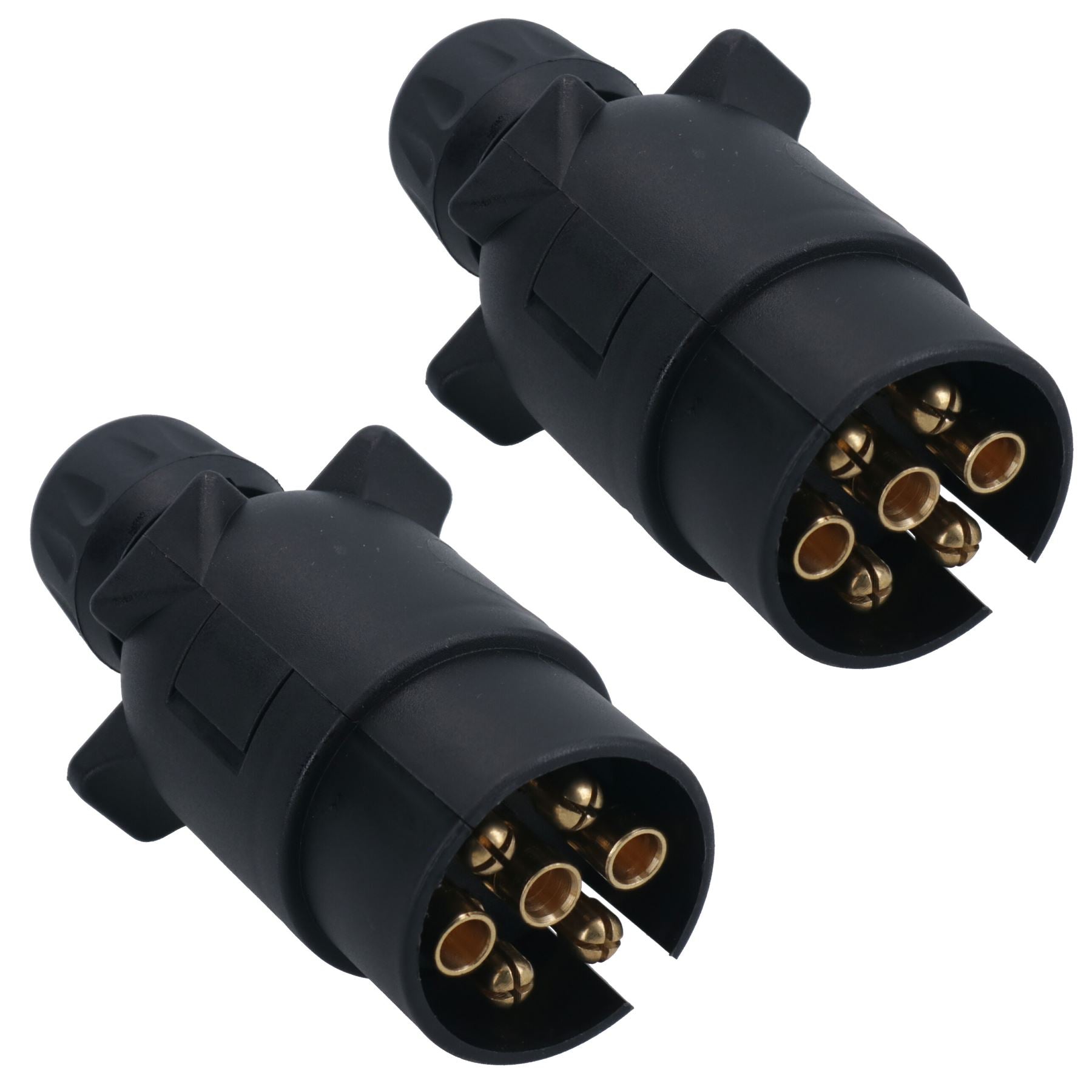

12N 7 Pin Plug Plastic Car Trailer Caravan Electrical Wiring Lights Connector

Professional 7 pin plug for commercial or occasional use

7 pin trailer and caravan plug

12v trailer connector plug

7 pin plug (N type) for lights on a caravan or trailer

Ideal for new builds or for replacing damaged plugs on existing trailers

Screw connection inside the plug for easy, quick and efficient replacing / re-wiring

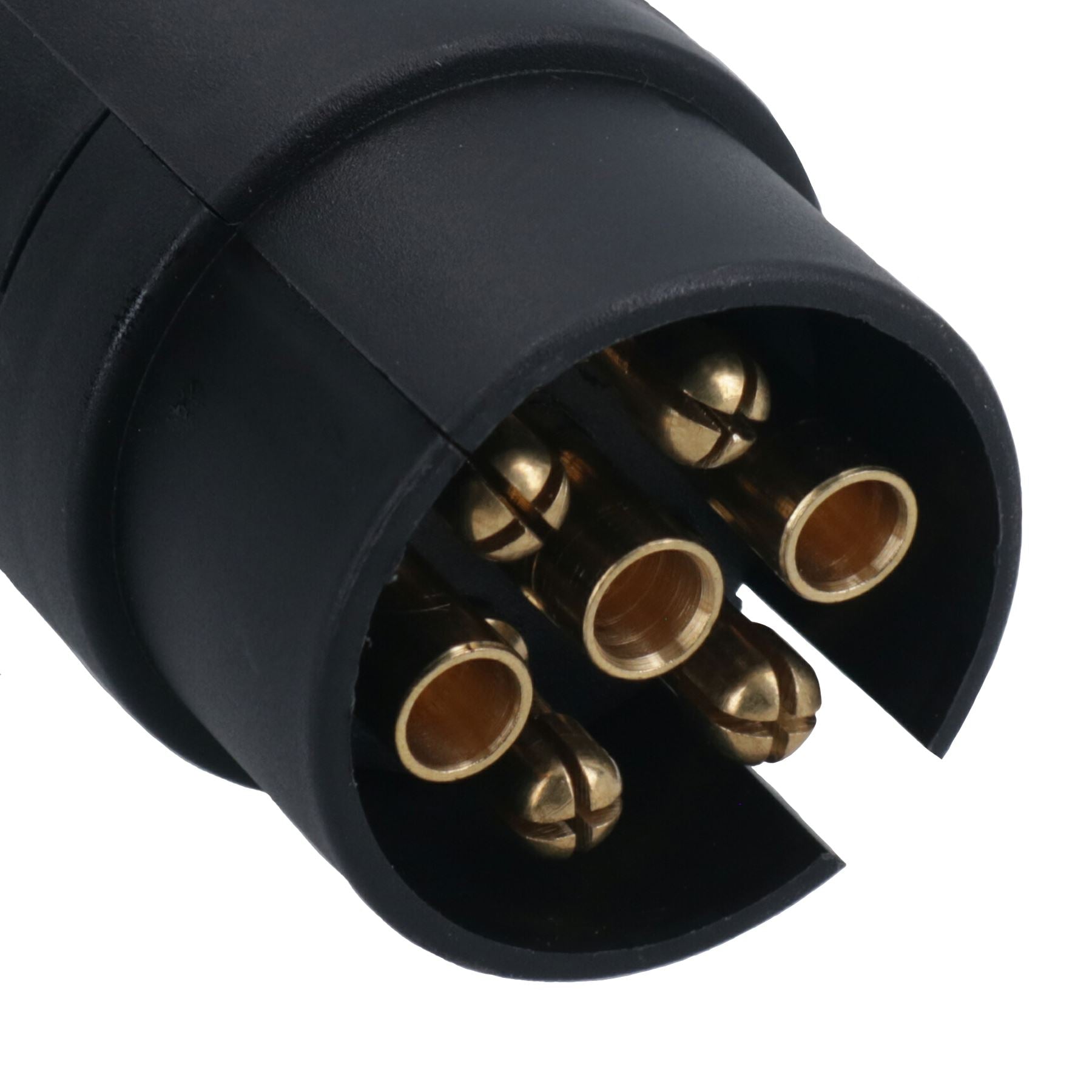

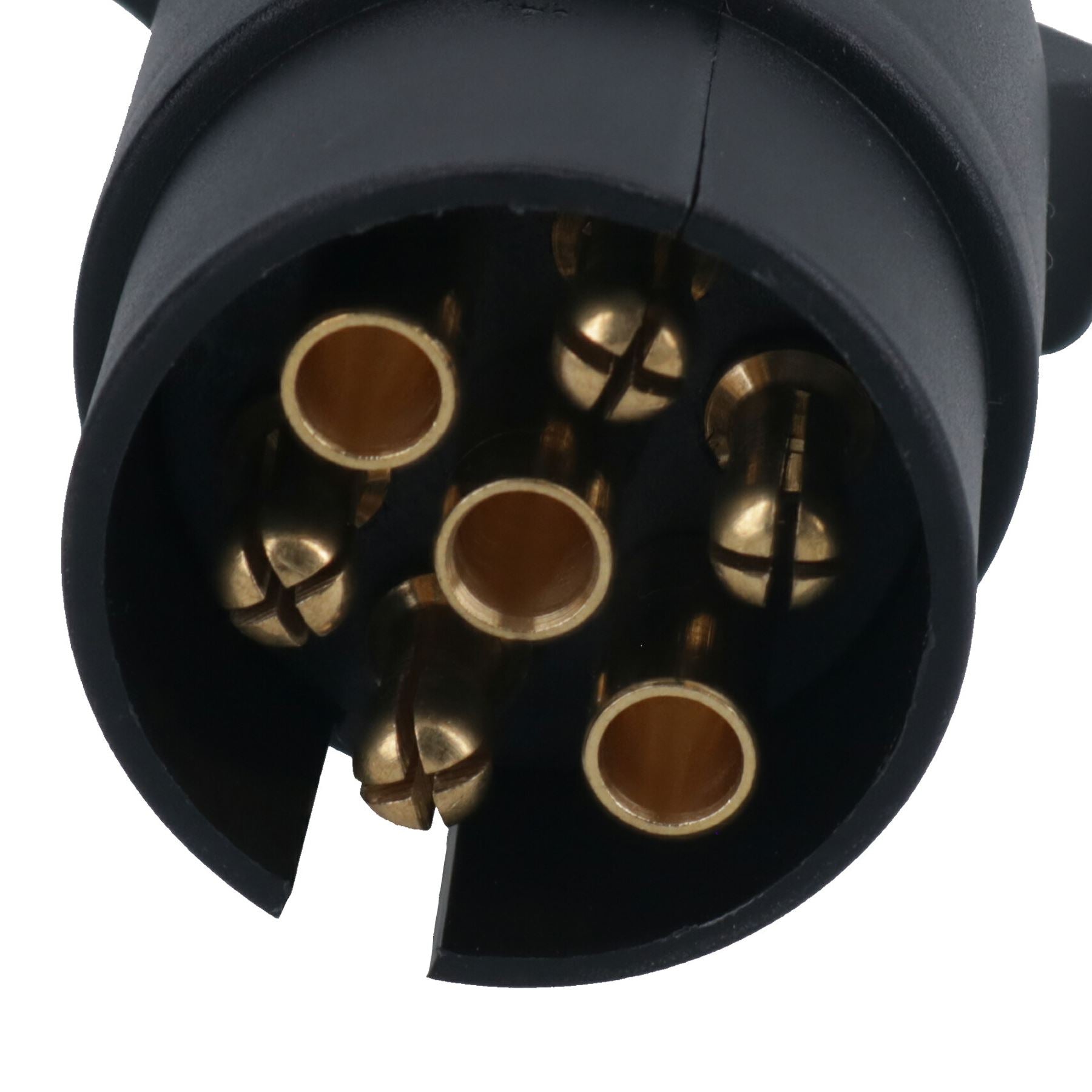

Brass pins in a durable plastic housing with rubber seal

Provides connections for indicators, side lights, brake lights and fog lamp

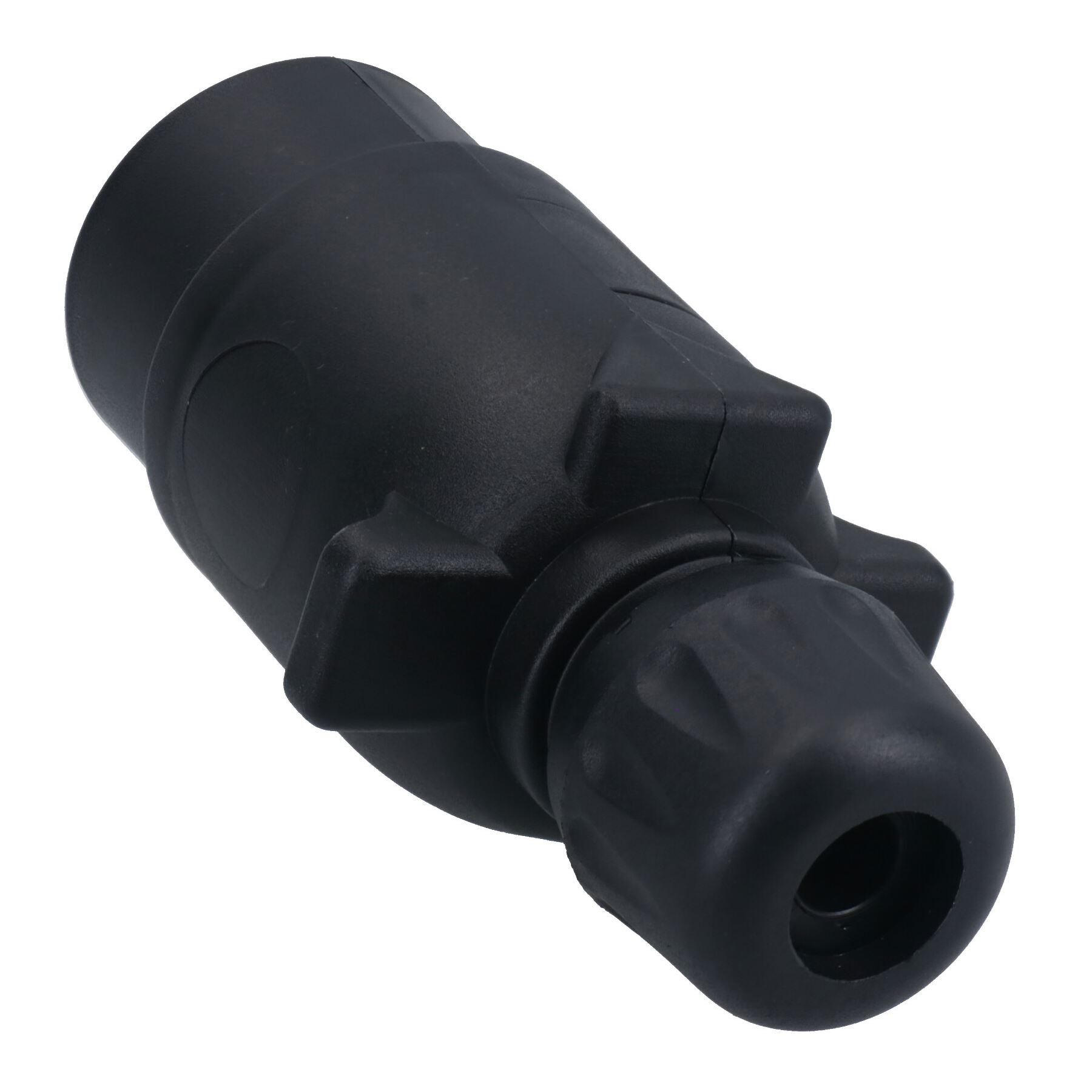

Suitable for 7 core cable 7 – 8mm in diameter

SPECIFICATIONS

• 7 Pin (N Type) trailer / caravan plug
• 12v trailer connector plug
• Screw connections
• Brass pins
• Plastic casing
• Suitable for 7 core cable up to 8mm in diameter
• Conforms to ISO1724 standards

MOUNTING GUIDE FOR THE MAJORITY OF TRAILERS / CARAVANS

1. Pin 1 – Yellow wire – left indicator
2. Pin 2 – Blue wire – Fog lamp
3. Pin 3 – White wire – Earth return
4. Pin 4 – Green wire – Right Indicator
5. Pin 5 – Brown wire – Right Side Light
6. Pin 6 – Red wire – Brake lights
7. Pin 7 – Black wire – Left side light

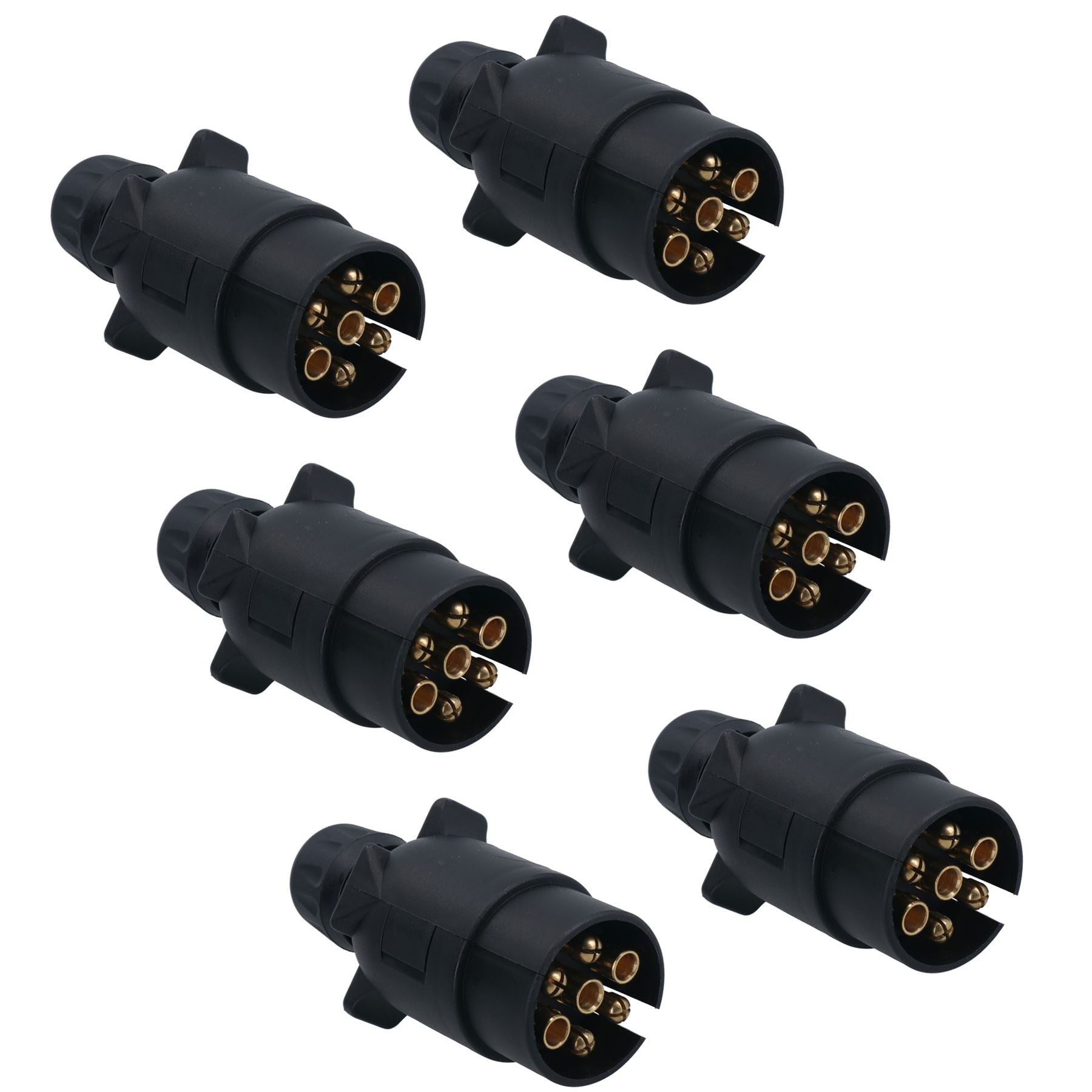

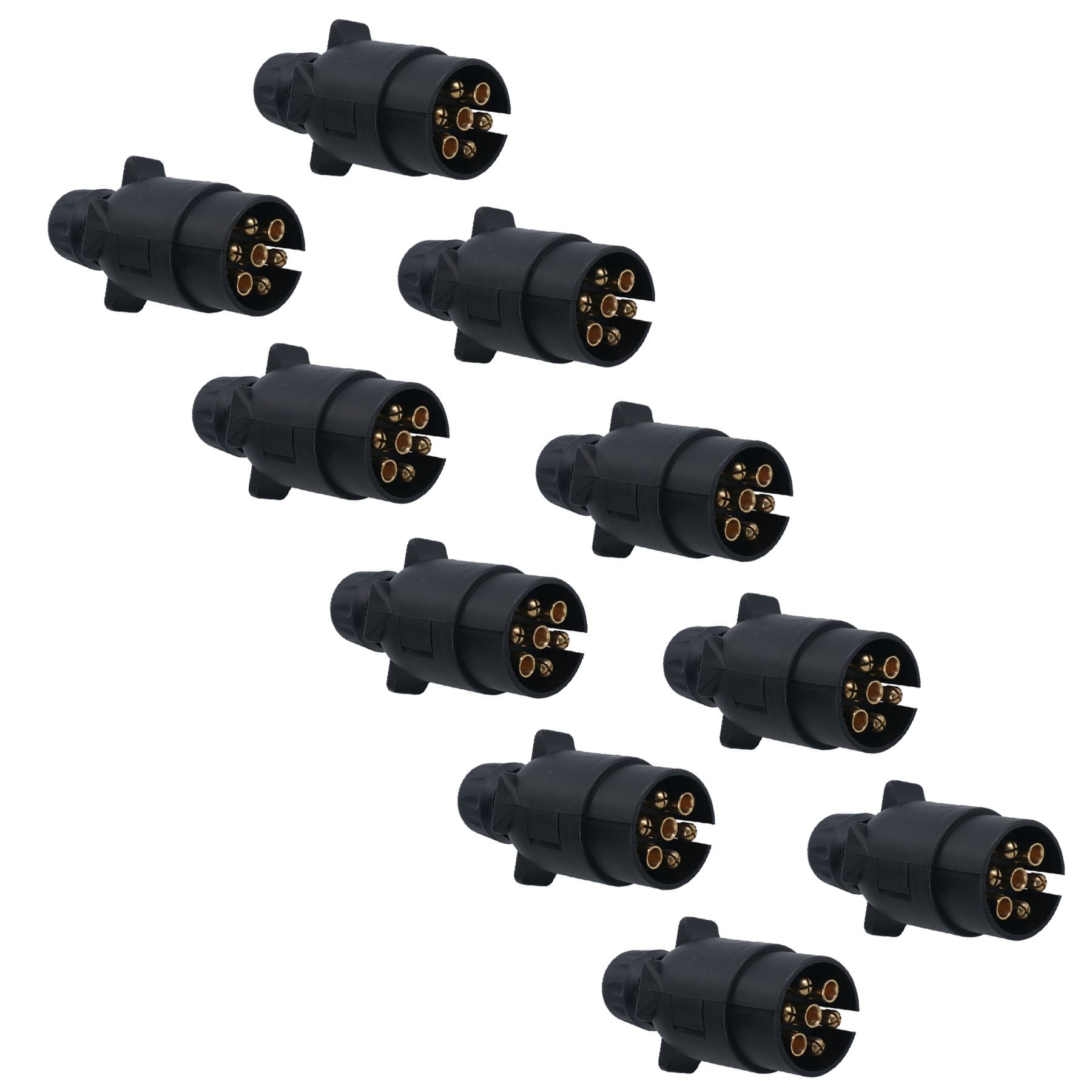

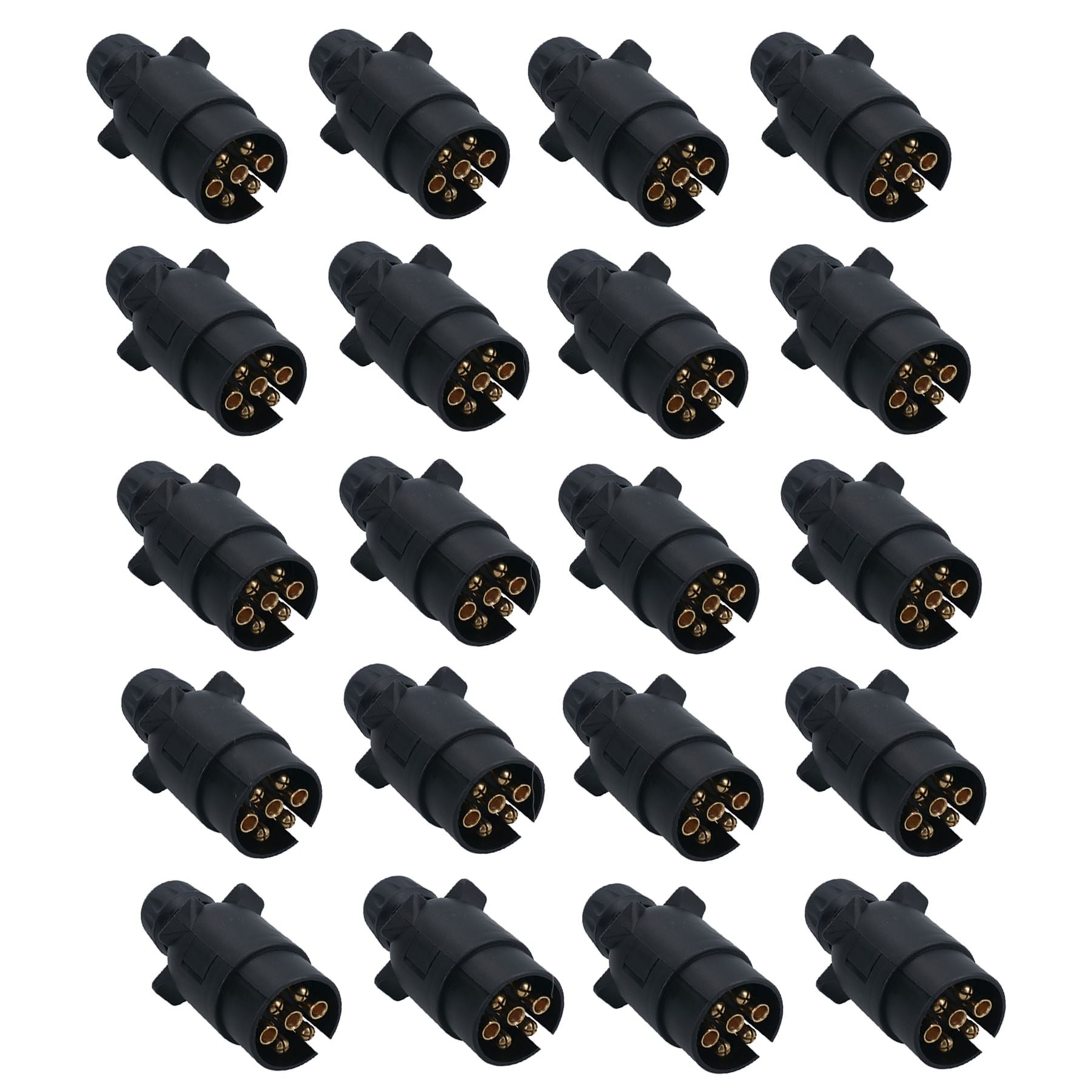

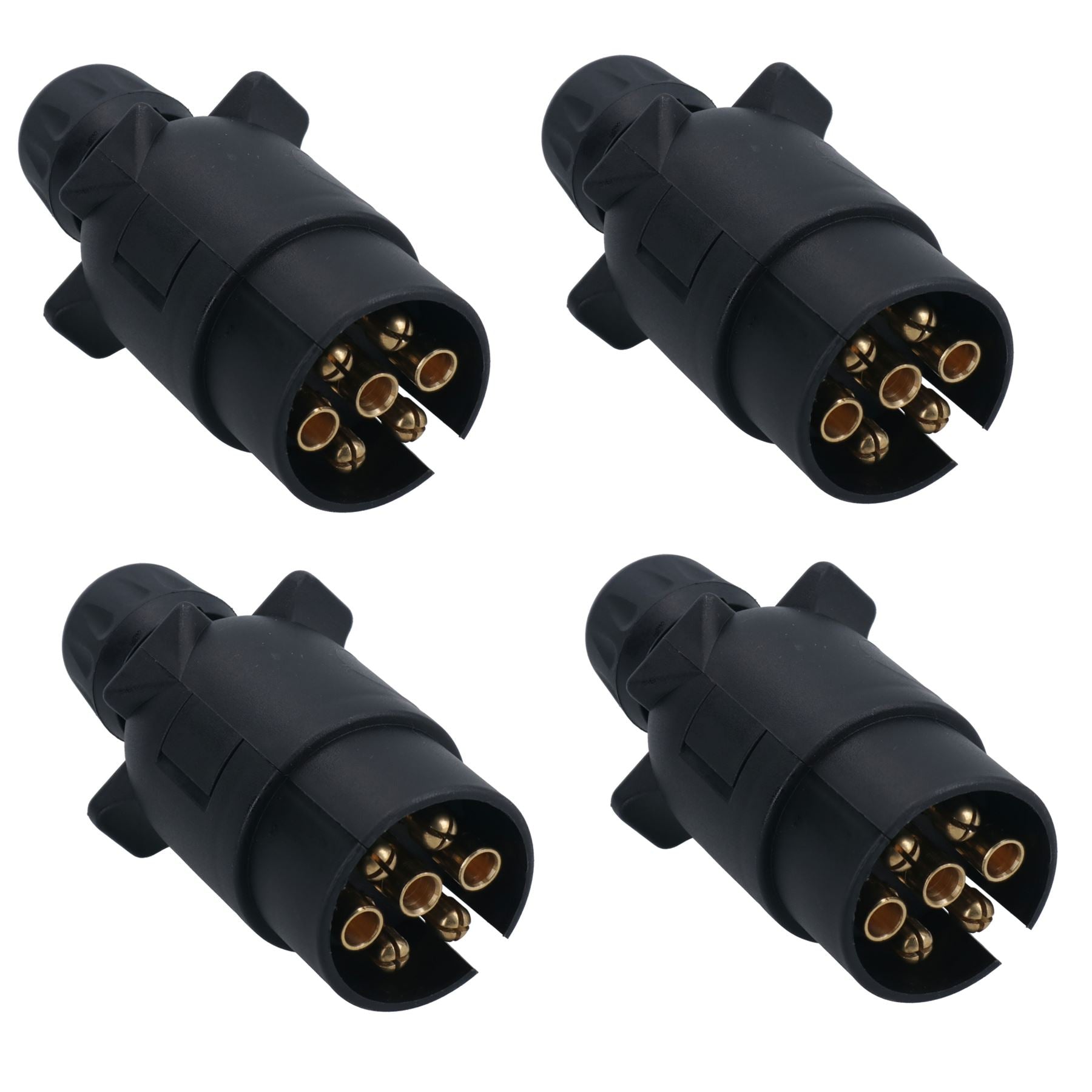

This is a multi variation listing for 6 different pack sizes, simply click on the tab above to select the correct pack size required
