Automatic Bilge Pump Kit Whale Supersub 650 2m Hose Hull Fitting Boat Water

Regular price £85.66 GBP Sale price £85.66 GBP
In stock: 1
SKU: AQ041_238_239_244
Description

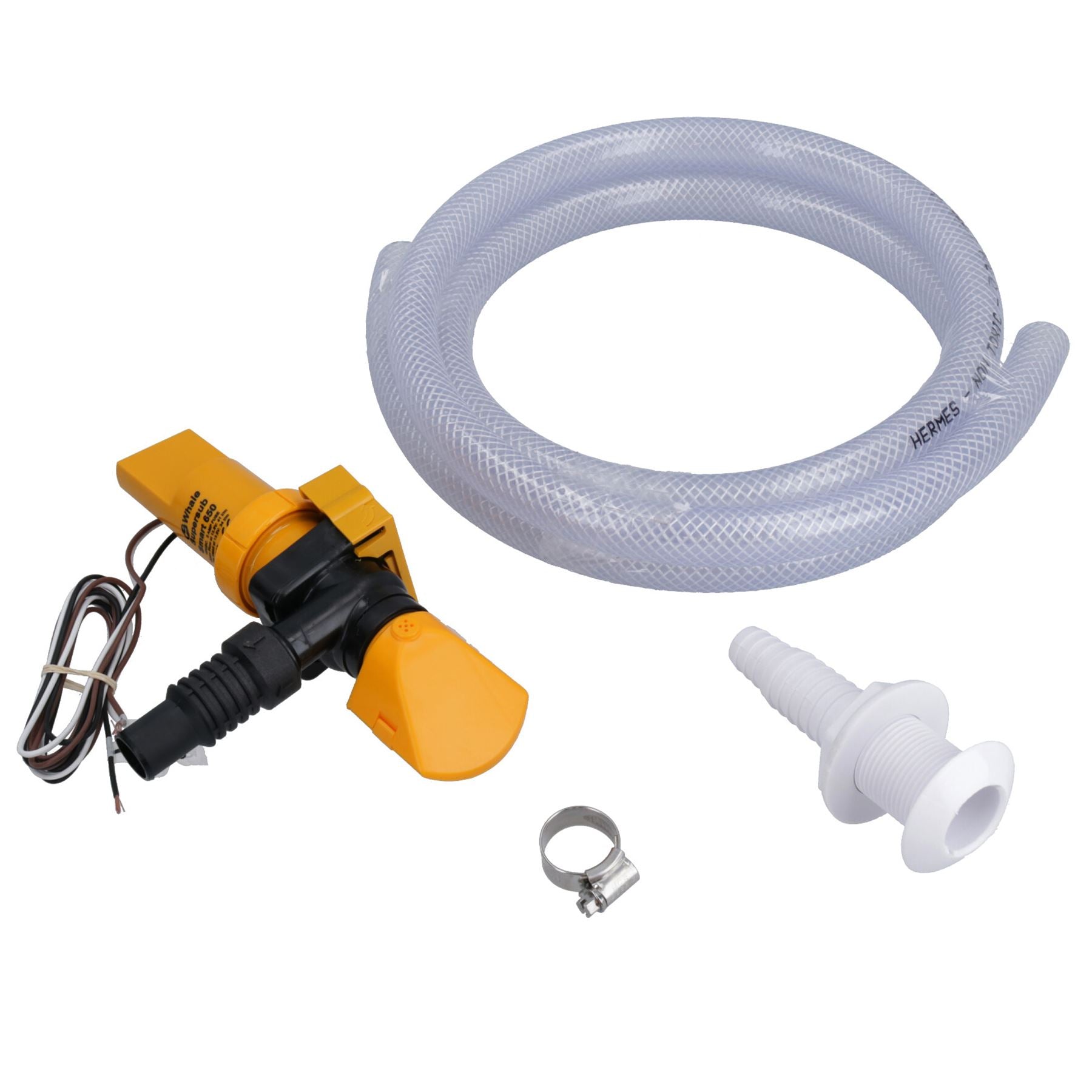

This bilge pump kit includes the Whale Supersub 650 automatic bilge pump, a 1" BSP through hull fitting, 2m of reinforced pvc hose and stainless steel hose clamps.

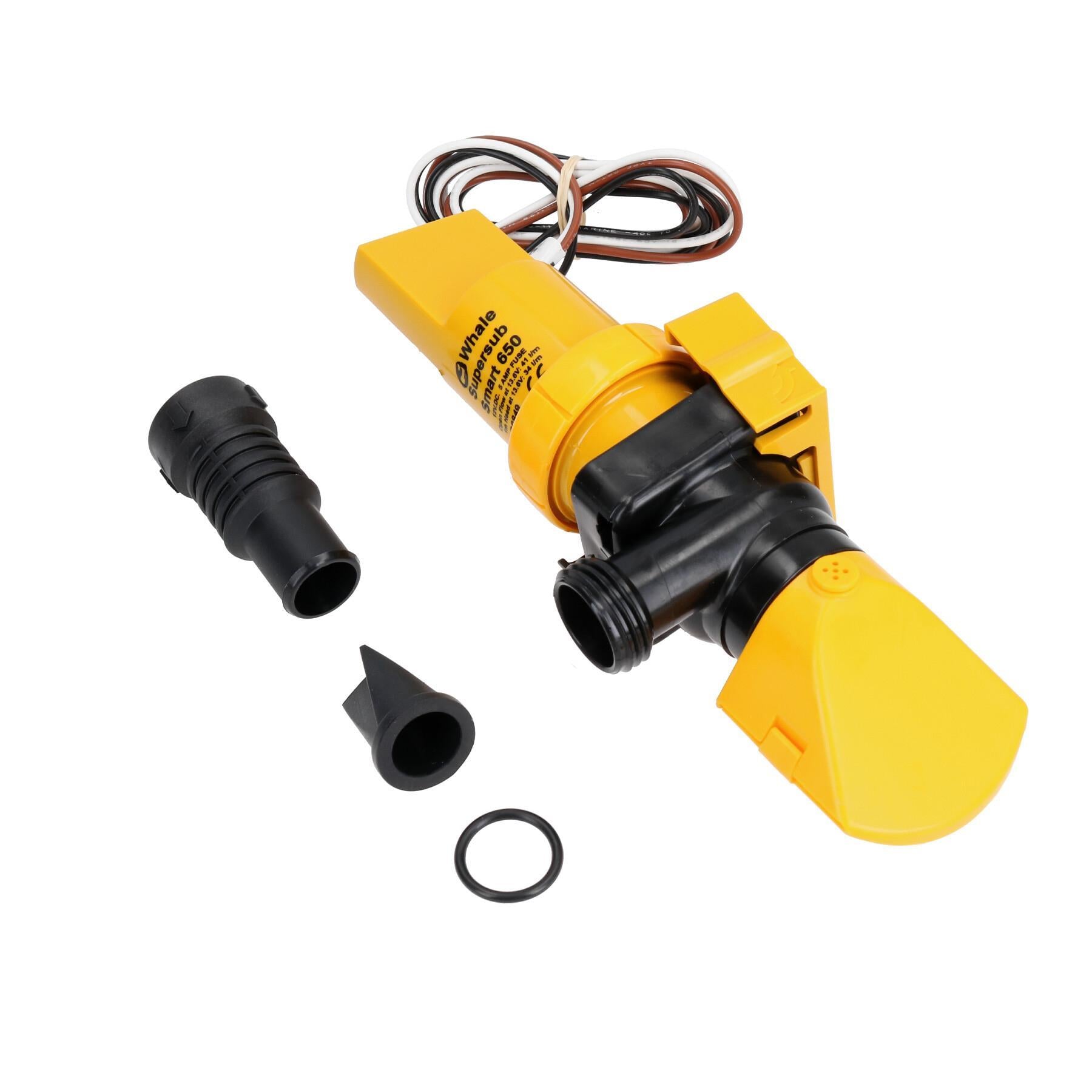

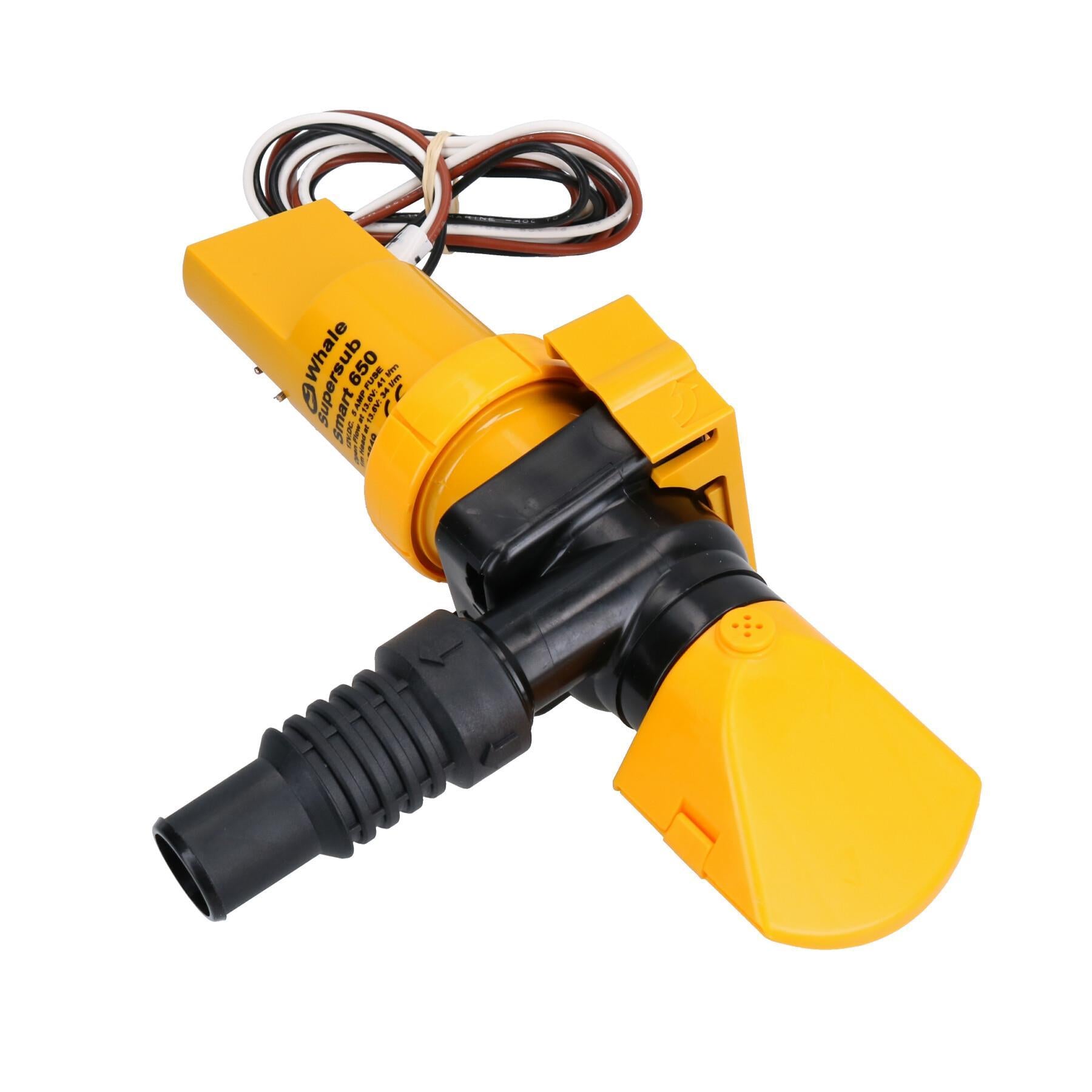

Top quality bilge pump is made by Whale, who have been making pumps for over 60 years and are used by many top boat manufacturers.

Fully automatic - switches on when water is detected. No separate float switch or complicated wiring needed. The Electronic float switch has no moving parts and uses ultra reliable electric field sensor technology. It cannot be jammed by bilge debris and is not effected by waves.

Very low and narrow profile, can easily be installed in narrow keels and under sole boards in shallow bilges.

41 Litres per minute open flow. (for comparison with other bilge pumps)

34 Litres per minute flow in a typical installation. (1m head at 13.6v)

Fully sealed submersible pump design.

Pump dimensions - 80mm length, 75mm width and 80mm tall. (excluding hose tail and hose fittings)

12v, Easy to wire. Only three wire connection.

Brown wire - to battery positive.
Black wire - to battery negative.
White wire (optional) - to bilge pump manual override switch.

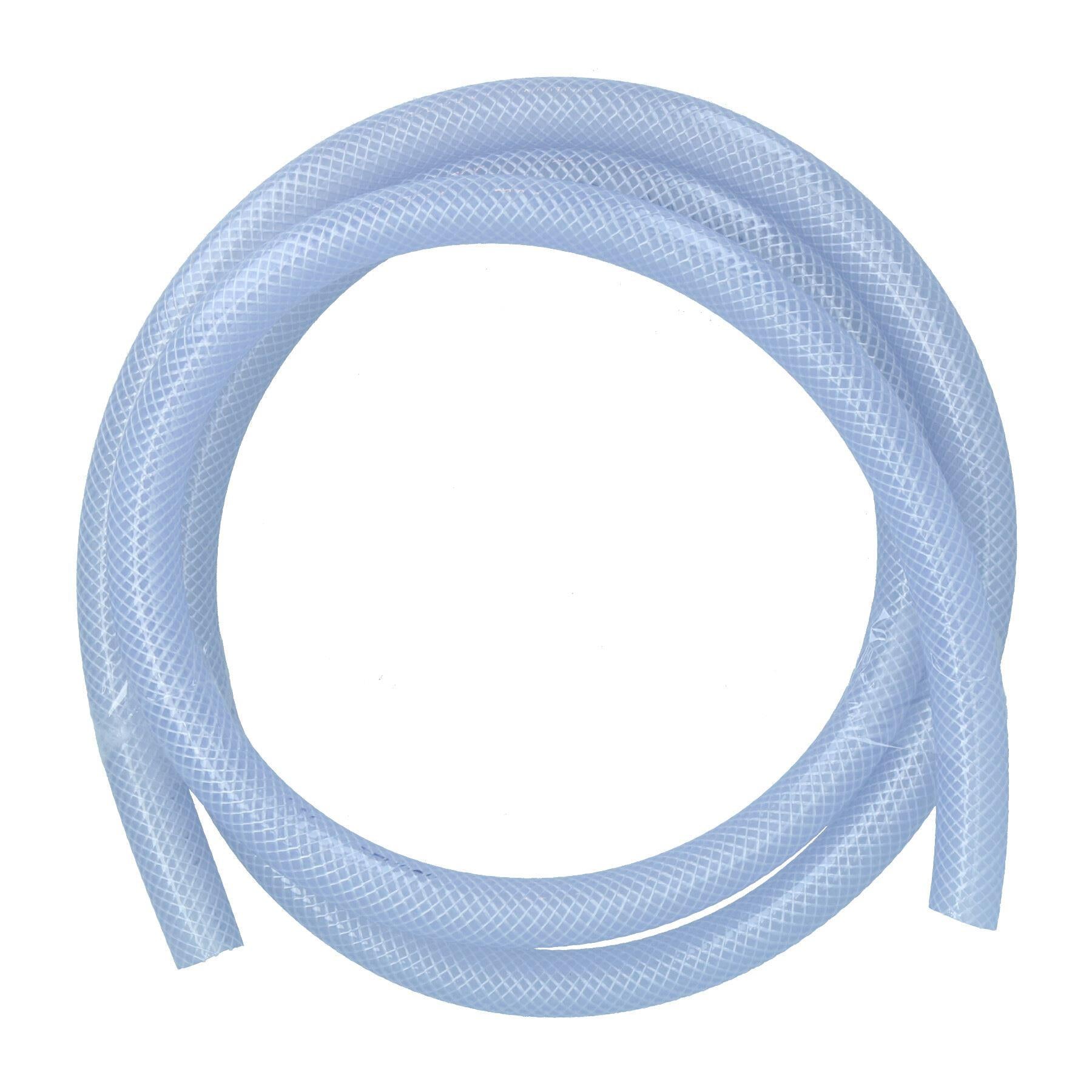

2m of Transparent PVC flexible hose. 3/4" (19mm) internal diameter.

2 x Stainless steel hose clamps. (marine rated)

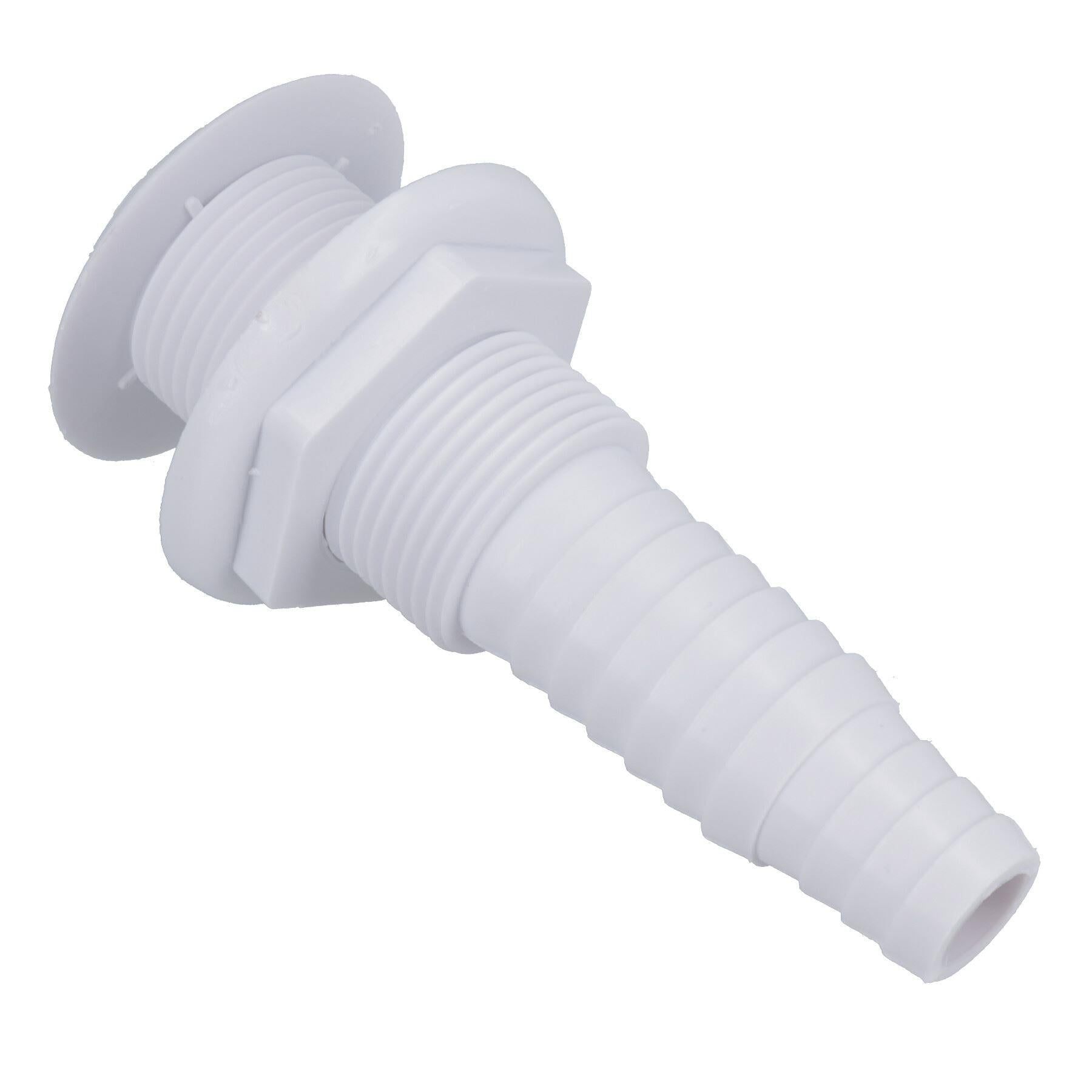

Tough, ICI Nylon 66 (Maranyl) through hull fitting requires 34mm (1-1/4") hole in the hull to fit.

PUMP CERTIFICATIONS & STANDARDS
Conforms to ISO 8849 and ISO 15083.
CE Certified directive 2004/108/EC- EMC compliant.
NMMA type approved.

This kit must be installed in accordance with the bilge pump manufacturers instructions (included) to ensure a safe installation. Particular attention must be paid to the route of the discharge hose and the position of the through hull fitting.
